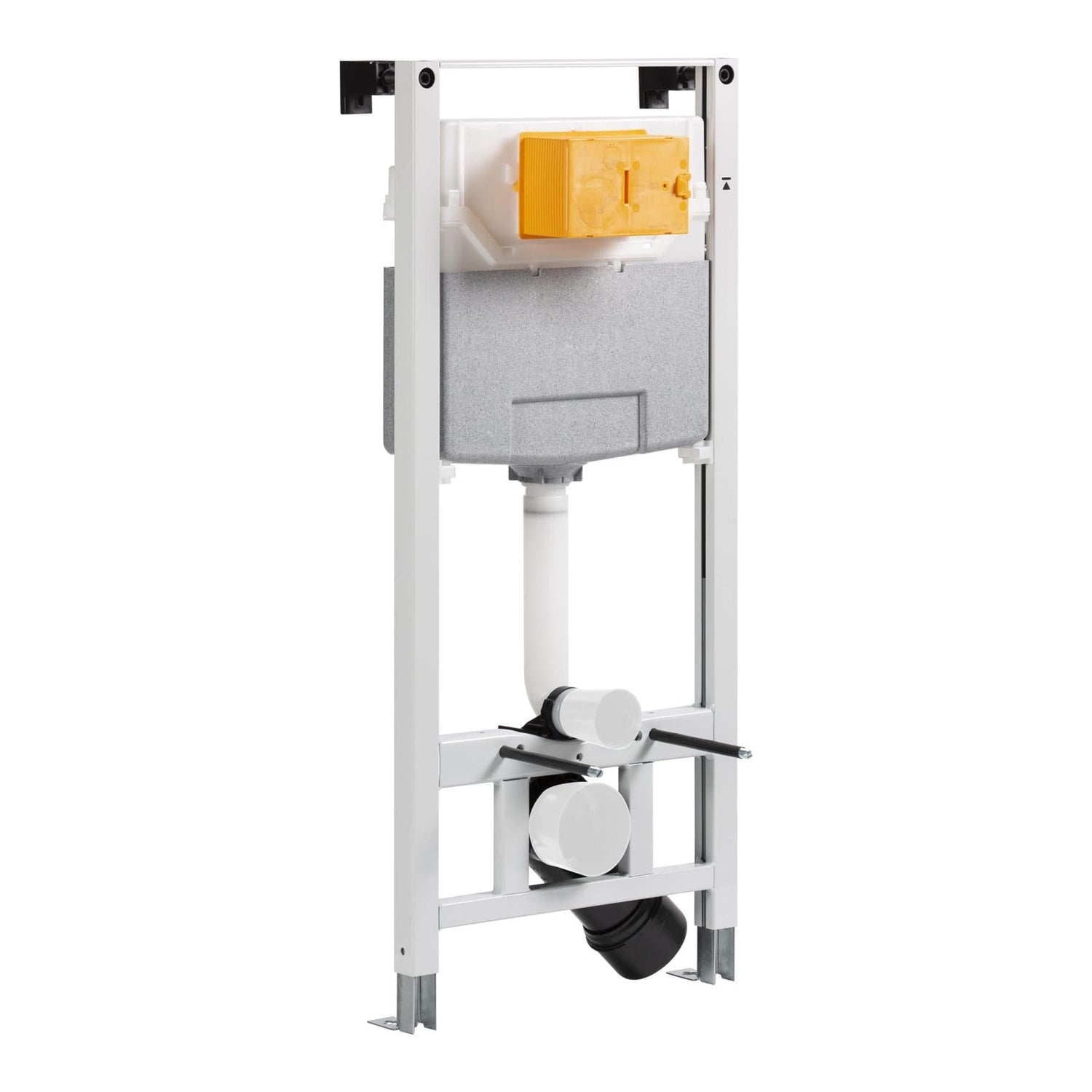

JTP Oli Wall Mounted 1200mm Frame and Cistern

The JTP 1200mm Standard Height Frame & Cistern is a standard height concealed mounting system designed for the installation of wall hung WC pans. The 1200mm unit is the industry standard choice for primary bathroom installations where there are no vertical height restrictions, offering maximum structural stability.

Technical Overview

This freestanding frame acts as a high strength structural chassis, transferring the full weight of the toilet and the user through the floor and wall. It is designed to be completely concealed within a stud wall, leaving only the toilet pan and the flush plate visible for a clean aesthetic.

Key Technical Features

• Standard 1200mm Height: The full height design allows for the flush plate to be positioned at an ergonomic height, typically above the level of the toilet seat when in the upright position. This is the preferred specification for most standard bathroom layouts.
• Front Facing Plate Mounting: This cistern is engineered for front facing flush plate installation only. This traditional vertical placement provides easy user access and ensures that the internal components are conveniently located for maintenance.
• Dual Flush: The unit features a 3/6 litre dual flush system, allowing for water savings.
• Freestanding Structural Steel: The frame is constructed from heavy duty, powder coated steel. It is designed to be securely bolted to the floor and braced against the wall, providing a heavy load bearing capacity.

• Uncompromising Stability: The increased height and vertical bracing of the 1200mm frame offer the most rigid mounting platform for a wall hung toilet, minimizing any flex or movement in the ceramic.
• Condensation Protection: The cistern is encased in an insulation jacket to prevent condensation from forming on the outside of the tank, protecting the integrity of the surrounding wall structure over time.
• WRAS Approved: This unit is fully WRAS (Water Regulations Advisory Scheme) approved. This certification ensures that the materials and components used meet the highest legal requirements for water safety and efficiency in the UK, preventing contamination and unnecessary water waste.

• Inclusions: Includes all necessary floor/wall brackets and the WC waste bend.

About JTP

Just Taps Plus (JTP) operates with a strict mission to ensure there is no compromise on their manufacturing. By focusing on the production of high quality taps, showers, and accessories, they maintain total control over the process starting from the design stage. They ensure only top raw materials and parts are used in their products and manufacturing. This dedication means that regardless of the design chosen from their collections, ultimate quality comes as standard.

Compatible Flush Plates Sold Separately
