TED Wyse Traditional 2/3 Outlet Digital Shower Valve with Crosshead Handle

The TED Wyse Traditional Digital Shower Valve introduces modern electronic precision to classic bathroom design. Anchored in Thirty Eight Degrees’ foundational philosophy, the system defaults directly to 38°C upon activation - the benchmark temperature for comfortable, safe daily showering. The traditional aesthetic features an octagonal backplate, solid brass detailing, classic indices, and familiar rotary controls.

Within this heritage design, an integrated OLED screen delivers real time digital temperature feedback, while an electronic thermostatic processor manages water mixing behind the scenes. Available in two or three outlet configurations, Wyse allows you to seamlessly switch between connected shower heads and handsets while retaining a traditional look.

Key Features:

• Tradigital Design Philosophy: Combines classic octagonal wall plate geometry, solid brass controls, and white indices with an integrated OLED display screen.
• Thirty Eight Degrees Default: Automatically powers on at the optimum 38°C baseline, allowing subsequent adjustments via the main rotary dial.
• Outlet Customisation: Available in two or three outlet options, featuring dedicated rotary controls to select and divert between active outlets.
• Selectable LED Halo Lighting: Features switchable white backlight illumination or dynamic colour changing LEDs that visually indicate water temperature shifts.
• Digital Thermostatic Stability: Electronically monitors incoming water to maintain exact set temperatures and eliminate thermal spikes.
• Automatic Safety Shutdown: Instantly cuts water flow if electrical power or cold water supply fails, preventing thermal risk.
• Flexible Wall Mount Placement: The surface control plate accepts vertical or horizontal wall alignment to suit existing tiling layouts and stud depths.

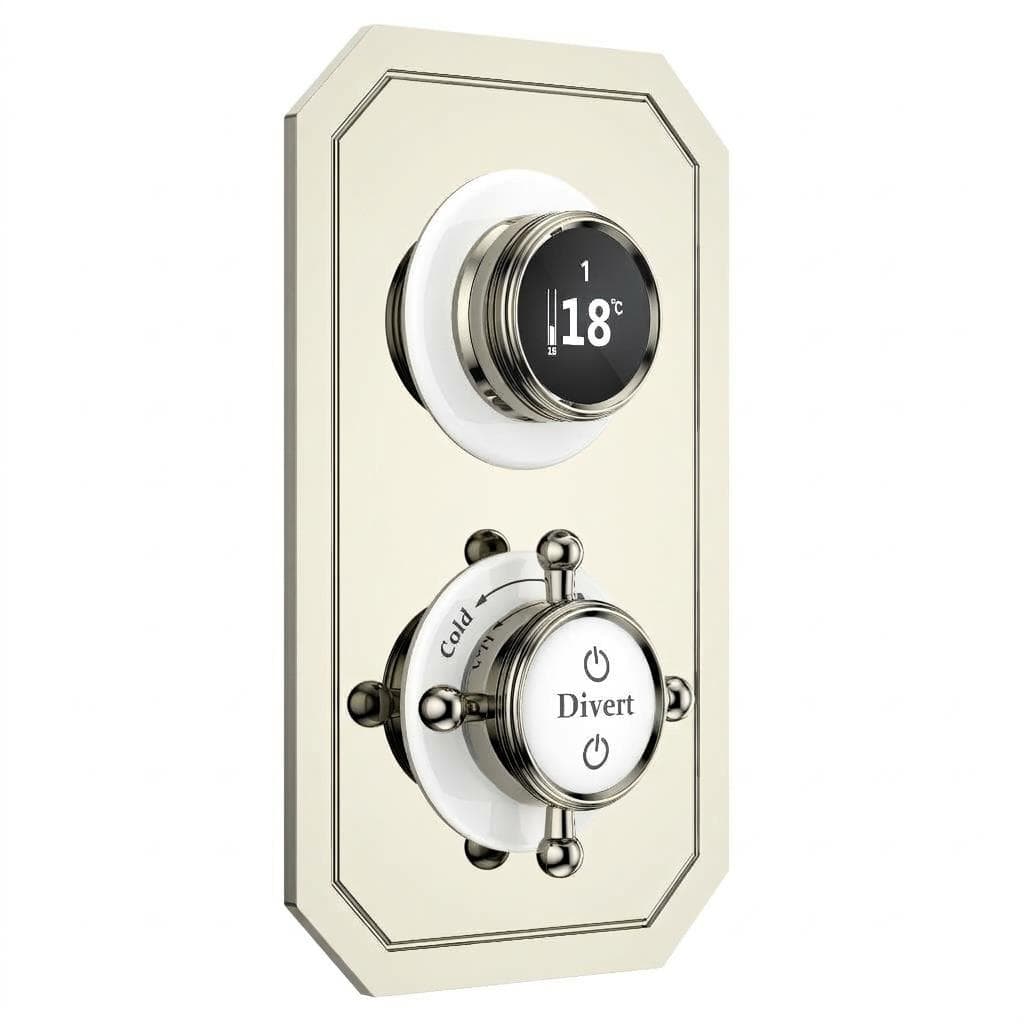

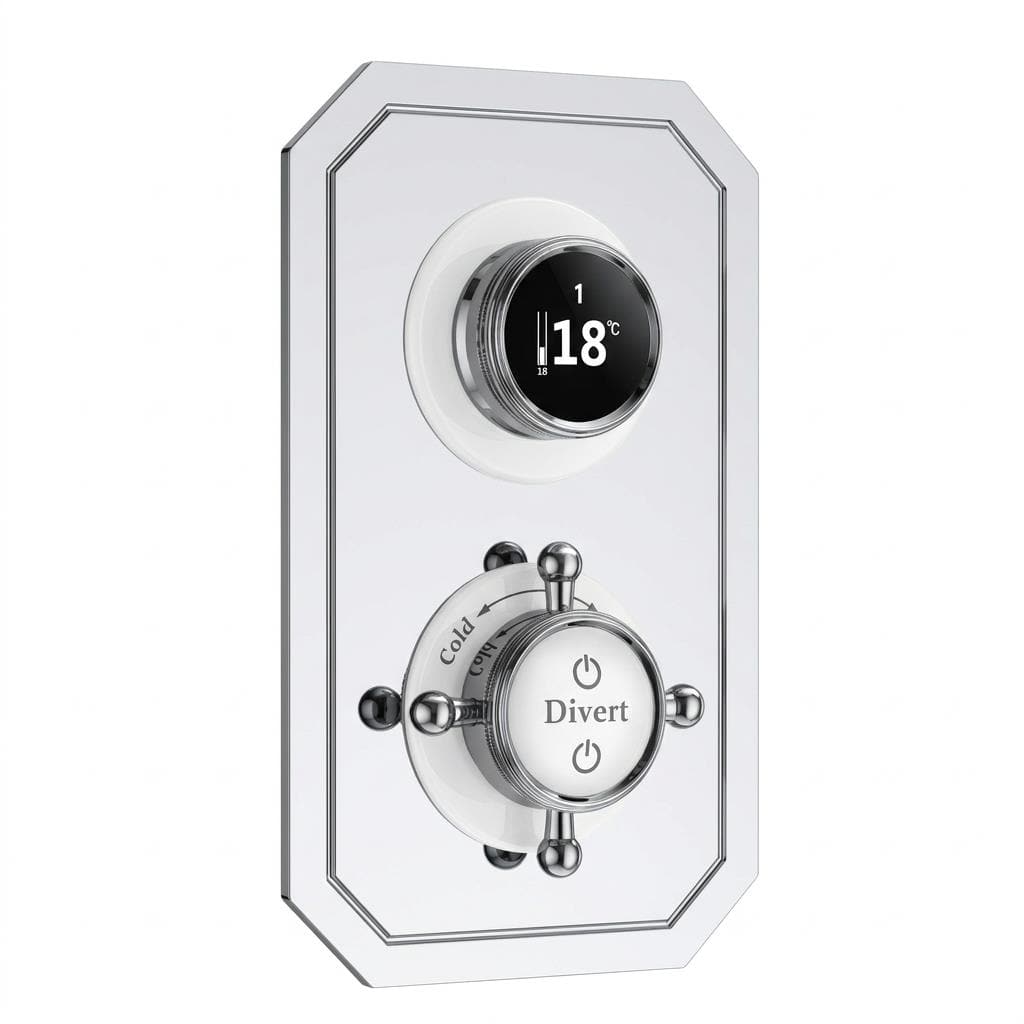

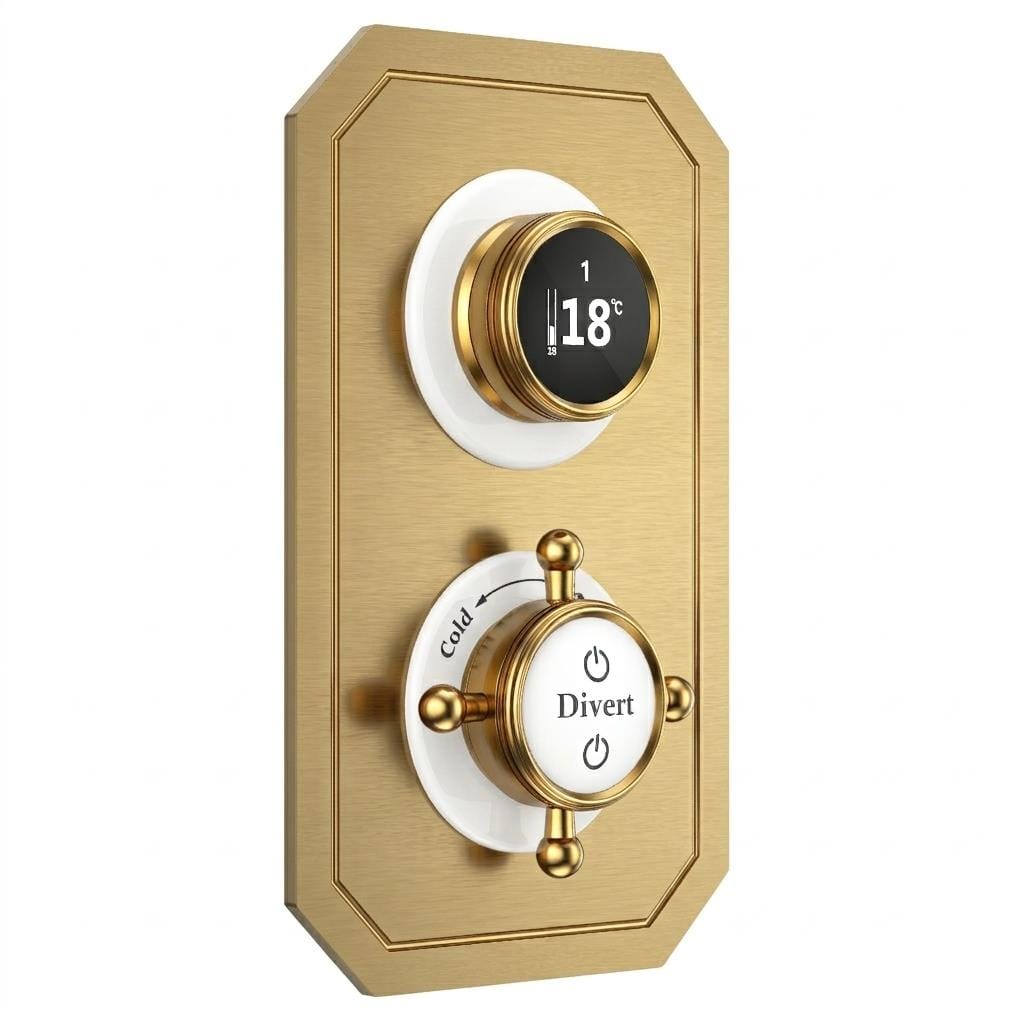

• Five Coordinated Finishes: Produced in Chrome, Brushed Brass, Brushed Nickel, Polished Gold, and Polished Nickel.

Installation and Technical Accessibility

The Wyse shower system physically separates user operation from the internal water mixing hardware:

• Remote Processor Location: The primary thermostatic mixing host and multi outlet diverter install in a dry, accessible service area—such as an airing cupboard, loft, or access void.
• In Wall Interface Mounting: The exterior control panel mounts to the shower wall with a minimum recess depth of 40mm, connecting to the central processor via low voltage cabling rather than internal plumbing feeds.
• Plumbing Standard: Features standard ½ inch BSP water inlet and outlet connections on the main processor box.

What's in the Box:

• 1 × Central Digital Processor Unit: Remote thermostatic mixing box and integrated diverter module.
• 1 × Wyse Octagonal Control Panel: Surface wall plate incorporating the primary OLED digital display.
• 1 × Rotary Control Pack: Brass control dials, central power button, and surrounding LED illumination ring.
• 1 × Electrical Hardware Pack: Low voltage system communication cables and main power supply unit.
• 1 × Trim Kit: Matching finish backplate trims and detailed classic indices.

(Note: Connecting pipework, brassware wall arms, overhead shower heads, and flexible hand shower sets are supplied separately or as part of complete Wyse package kits).
