TED Venn 2 Outlet Concealed Digital Shower Valve

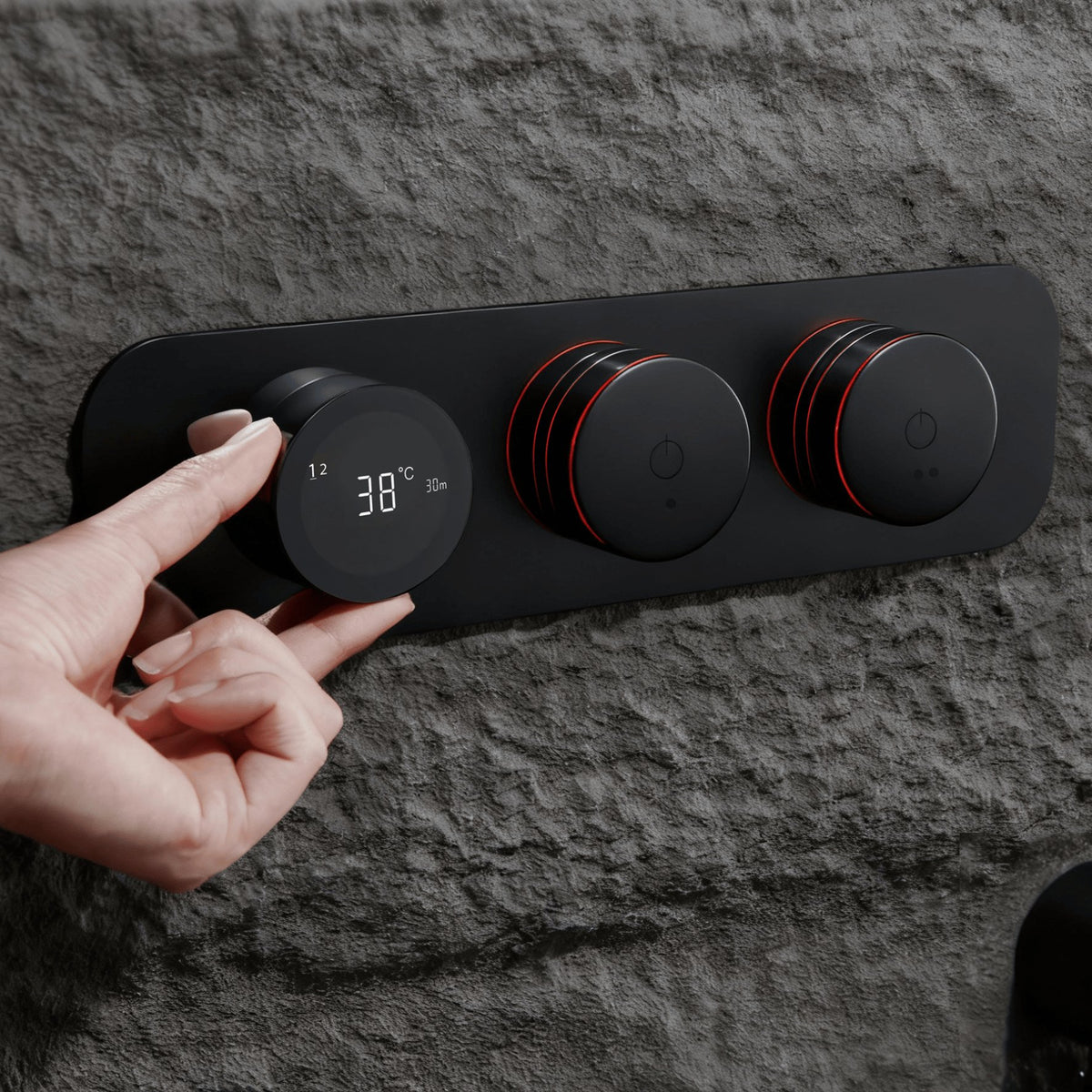

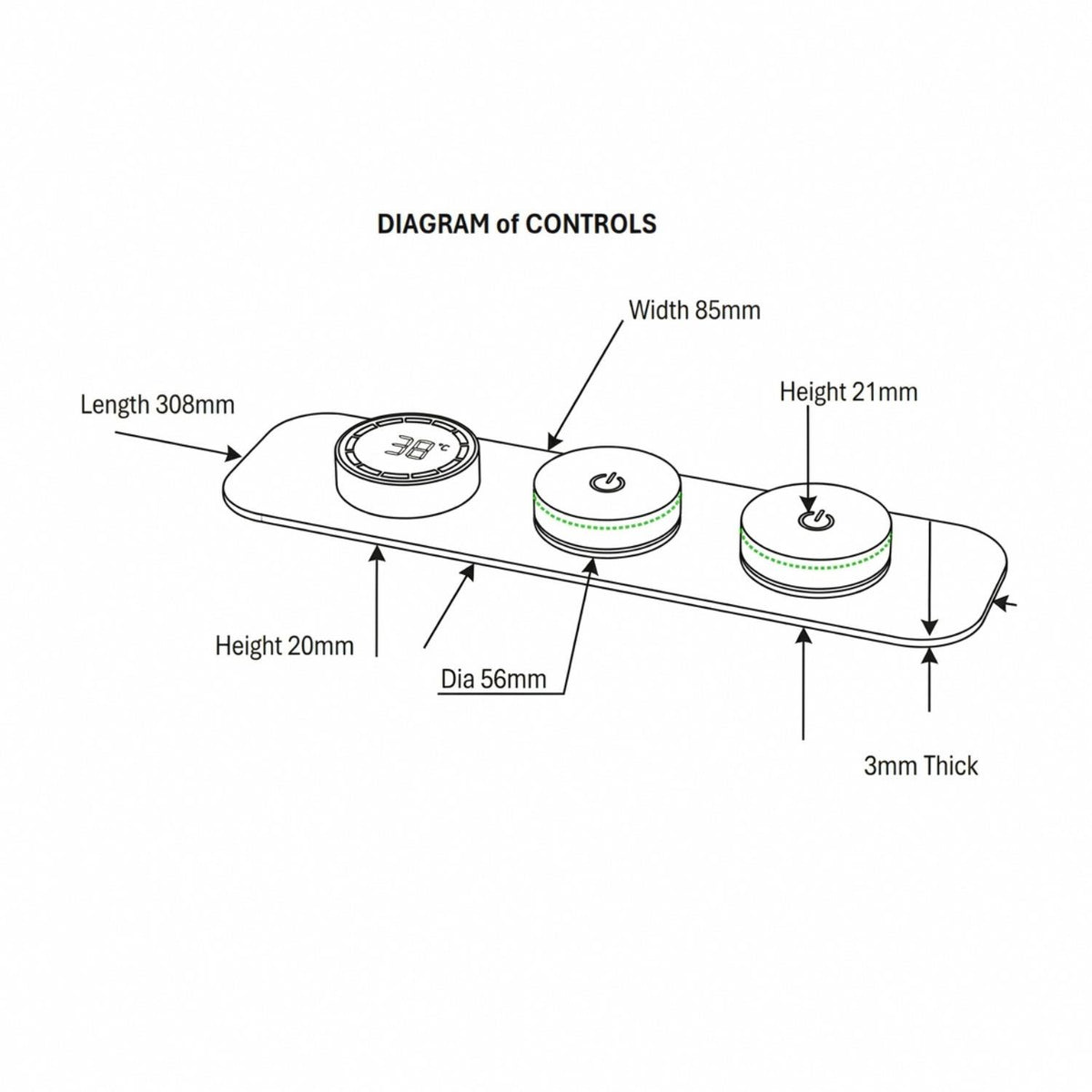

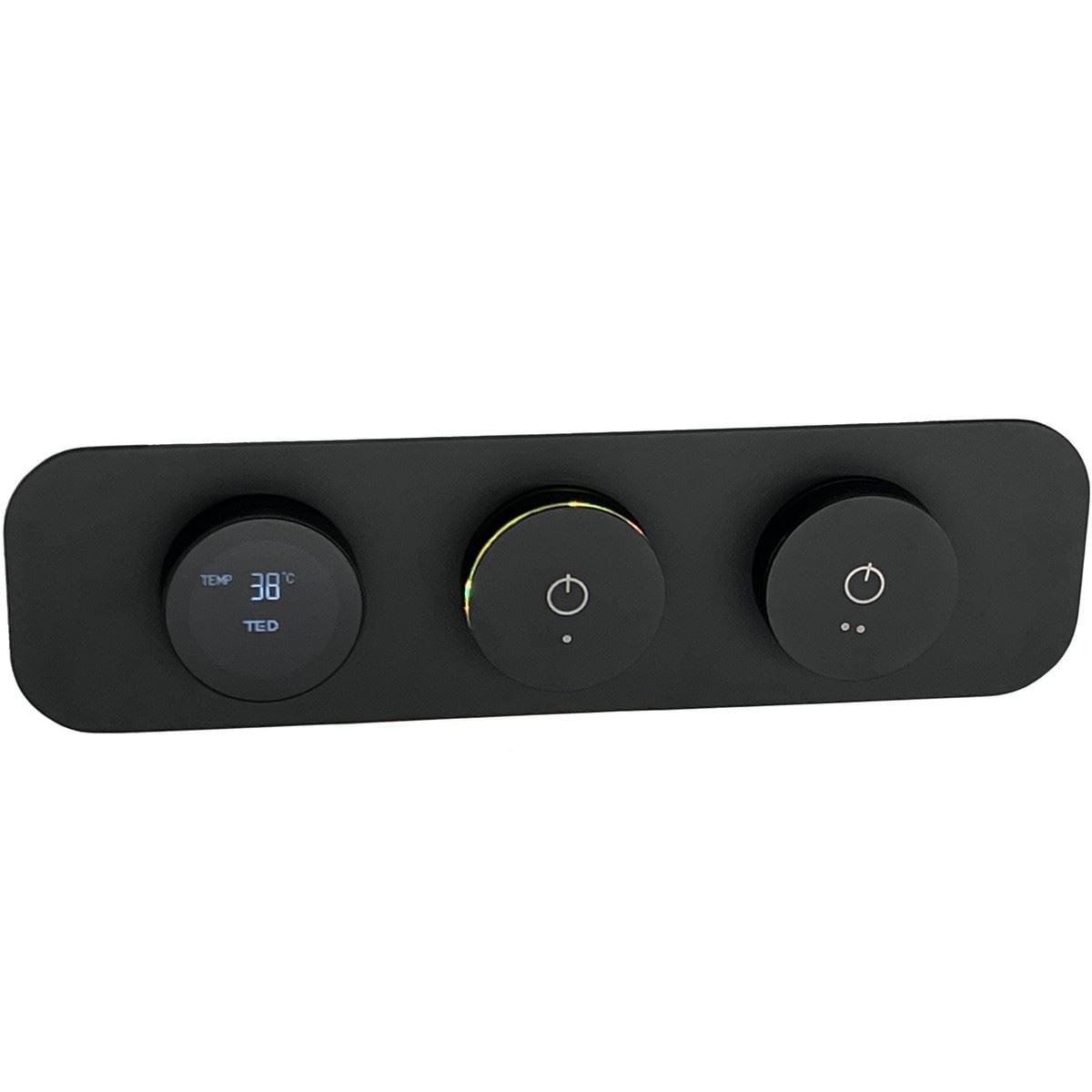

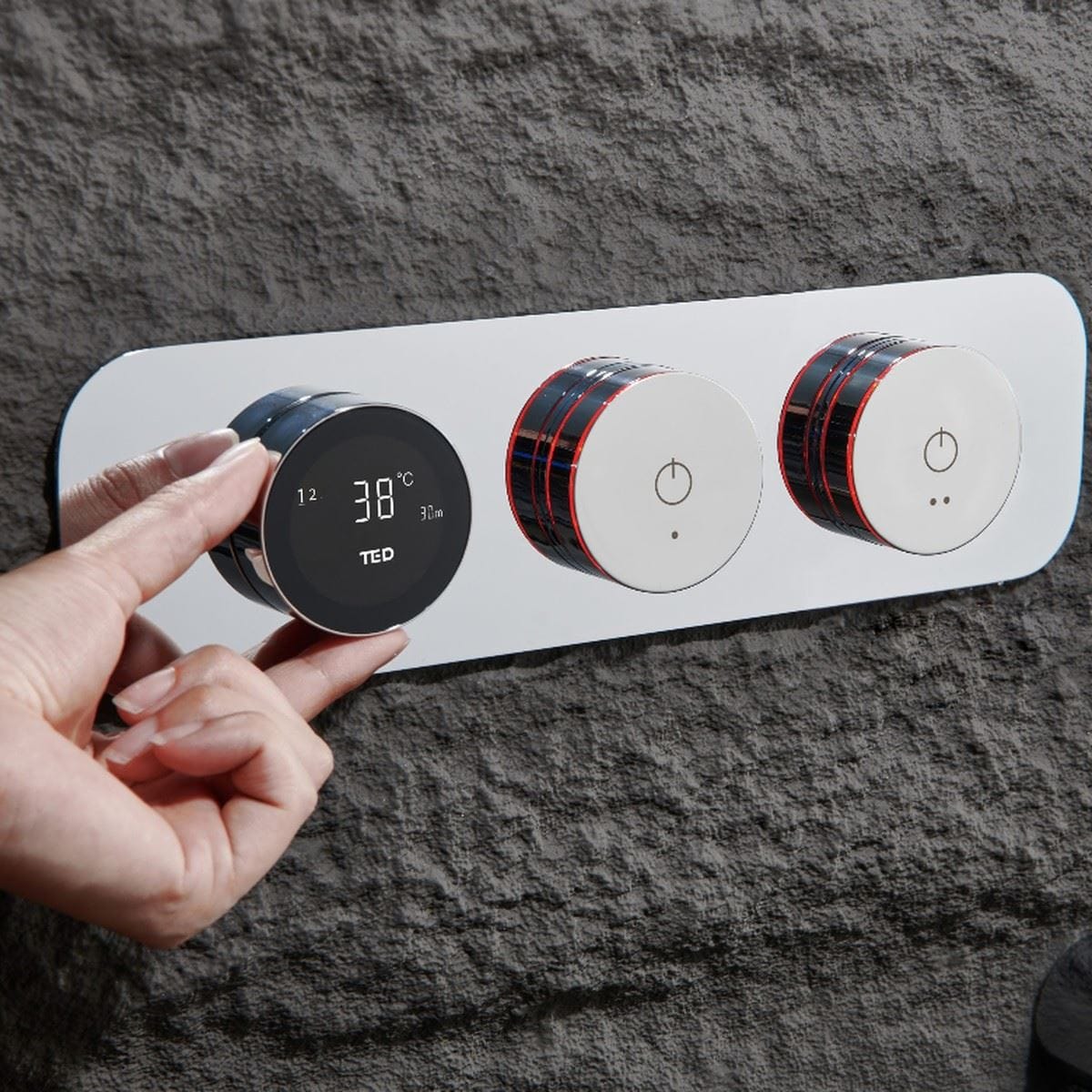

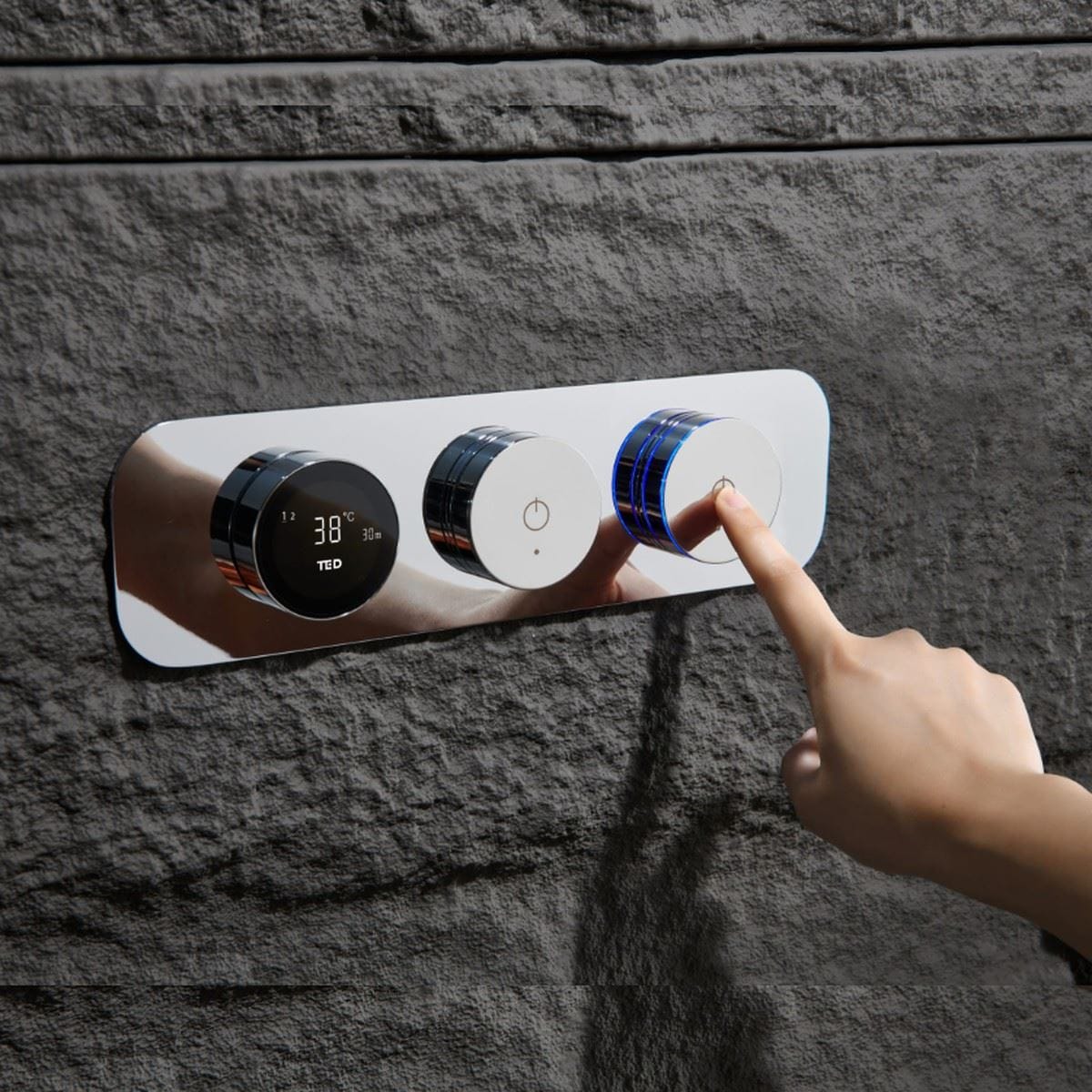

The TED VENN 2 Outlet Digital Shower System gives you direct control over shower temperature and water flow through a distinctive digital interface. Finished in Chrome or Matt Black, the square control panel features two outlet dials and a digital screen positioned on the left when installed horizontally.

Following TED’s Thirty Eight Degrees philosophy, the system starts at a default temperature of 38°C, providing a comfortable starting point for everyday showering. Its thermostatic processor manages water temperature electronically.

Key Features

• 38°C Default Start: Starts at 38°C for a comfortable everyday temperature, which can be adjusted to suit your preference.
• Two Outlet Control: Select between two connected water outlets using the individual control dials.

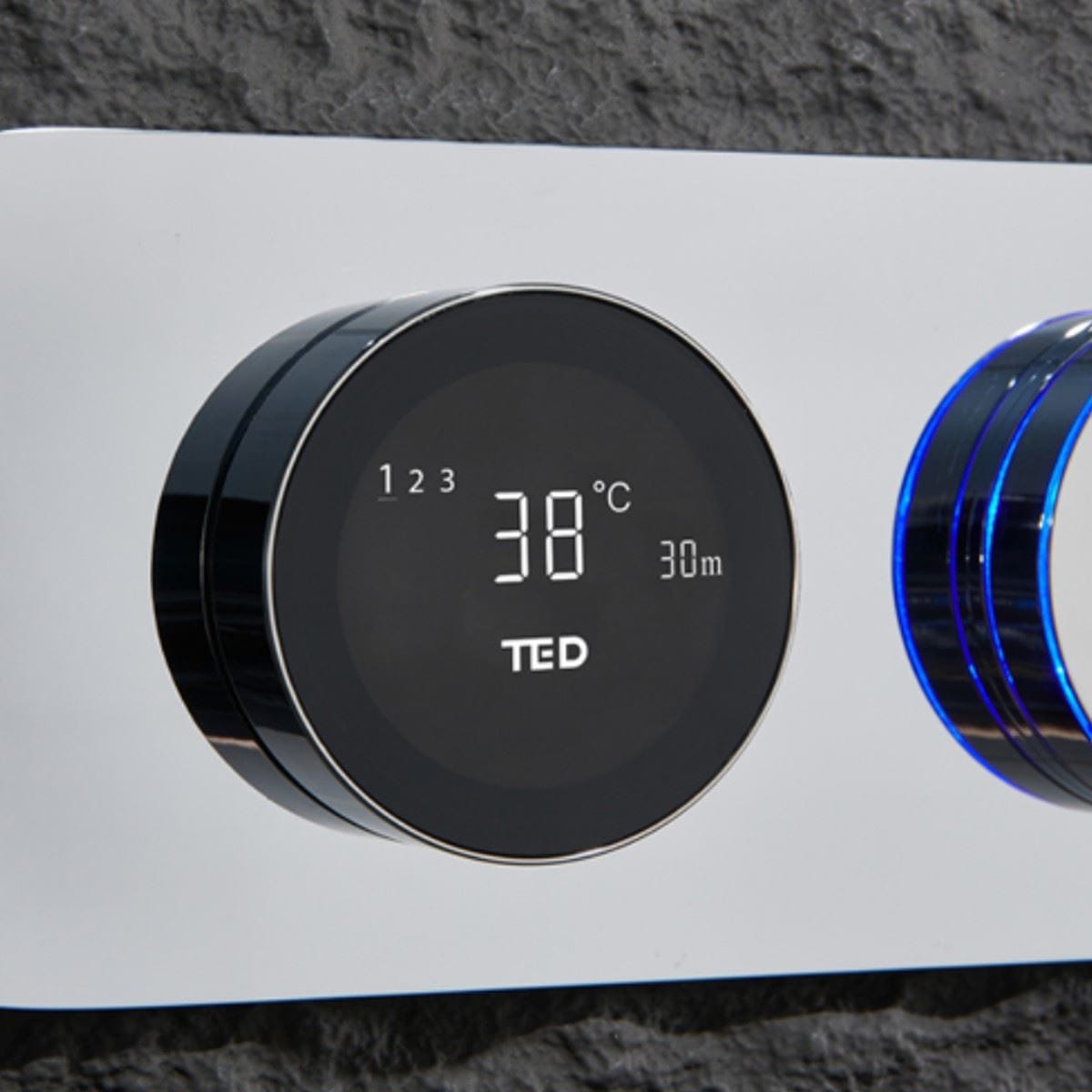

• Digital Temperature Display: A clear screen shows the selected temperature, with colour-changing LED illumination providing a visual indication of water temperature.
• Adjustable Water Flow: Use the control ring around the display to adjust flow to your preference.
• Wireless Warm Up Remote: Start pre-warming the shower remotely, then return to the main panel to resume operation when the water reaches the set temperature.
• Thermostatic Temperature Control: Helps maintain a consistent temperature during use and reduces the risk of sudden temperature changes.
• Safety Shut-Off: The system automatically stops water flow if the water or power supply is interrupted.
• Adjustable Run Timer: Set a shutdown time to help manage shower duration and water use.

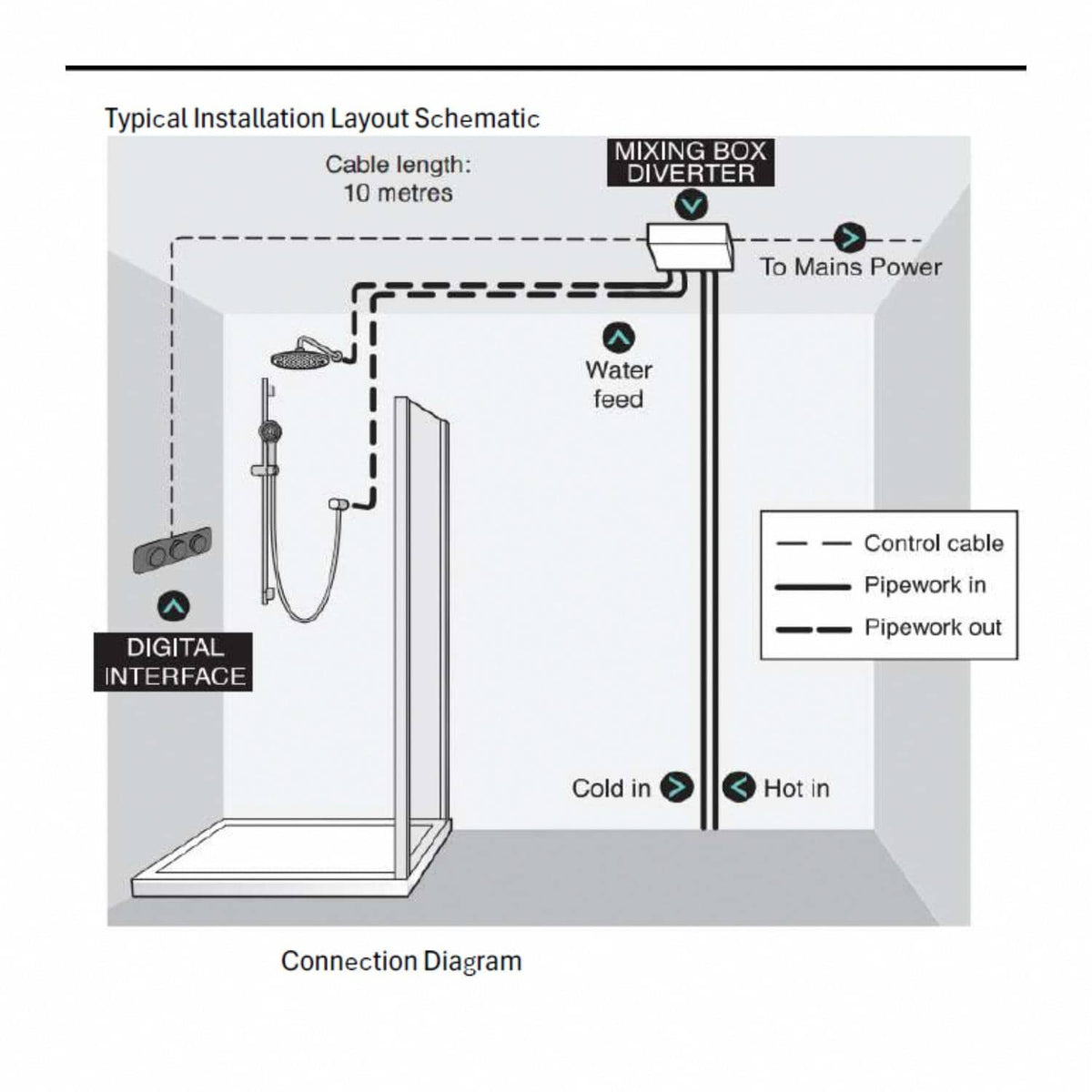

Installation and Compatibility

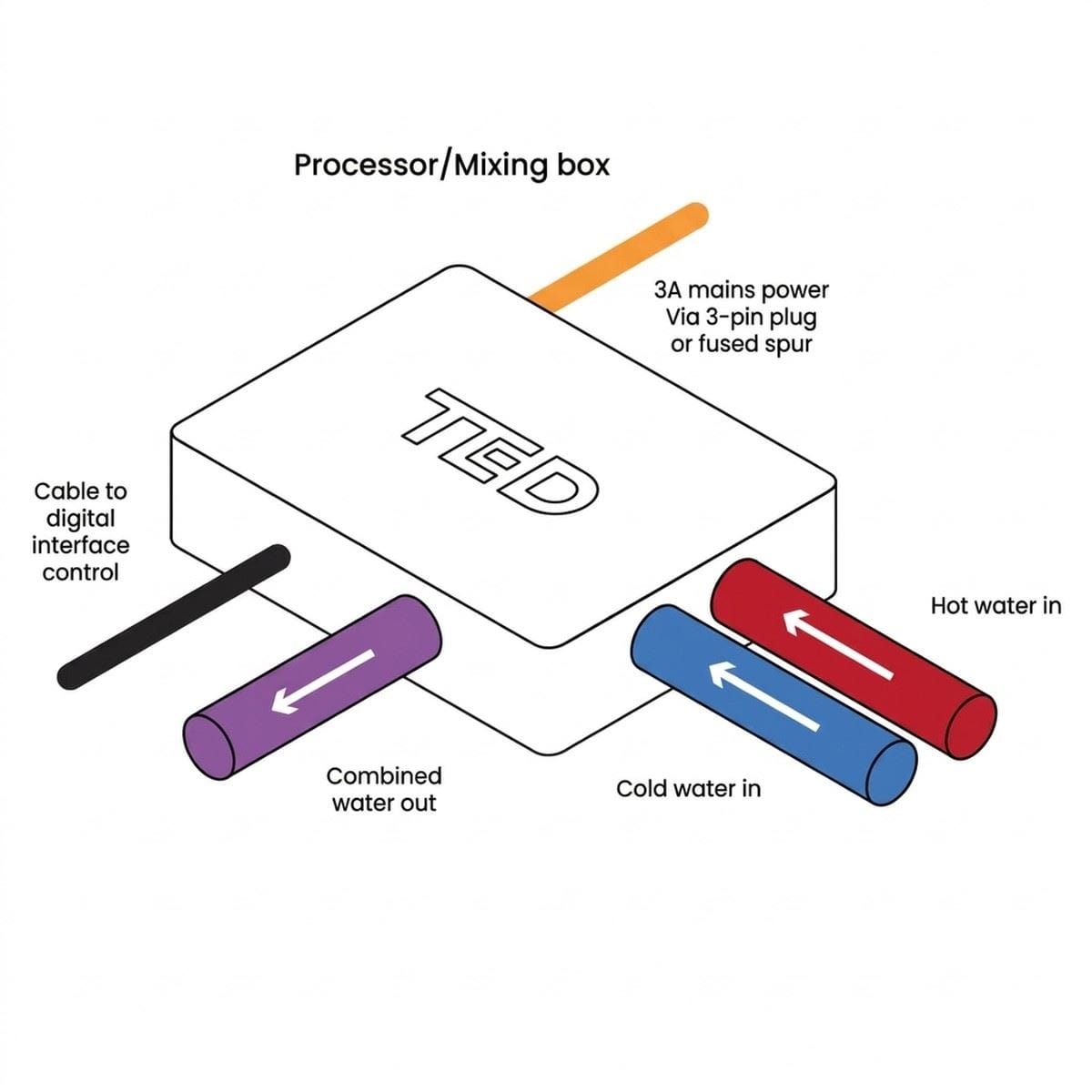

The VENN control panel can be mounted horizontally or vertically, allowing flexibility when planning the shower layout. Its separate processor is installed out of sight as part of the concealed system, keeping the visible controls neatly presented on the wall.

The system requires hot and cold water supplies and an electrical connection. Shower heads, handsets and other connected outlets are supplied separately, so you can choose the fittings to suit your installation.

What's in the Box

• TED VENN 2 Outlet digital control panel
• Thermostatic processor
• Wireless warm-up remote
• Installation kit, including cables, power adapter and backplate
• User guide
