TED Togo Oval BubbleSpa® Complete 2 Outlet Digital Shower Kit with Wireless Button

The Thirty Eight Degrees Togo Oval BubbleSpa® 2-Outlet Digital Shower Package provides a complete hydrotherapy system controlled via a precision digital interface. Combining the flagship Air-Powered™ BubbleSpa® overhead shower with the intuitive Togo Oval control panel and a single function secondary pencil handset, this system integrates advanced water delivery with exact thermal control.

Key Features:

• 3 Function Air-Powered™ Hydrotherapy: Precision HydrO₂ nozzles infuse air into the water stream to generate large, soft "BubbleRain" water droplets
• Integrated LED Illumination: Embedded intelligent lighting system illuminates cascading water bubbles with multiple selectable spray visual modes
• Togo Oval Digital Control: 190mm x 75mm oval faceplate featuring an OLED digital temperature display, push-and-turn dial, and backlit LED temperature ring
• Cool Touch Interface: Control unit is completely isolated from hot water lines, remaining safe to touch at all times
• 38°C Thermostatic Baseline: Built around the Thirty Eight Degrees core standard for consistent thermal stability, safe bathing, and energy efficiency
• Secondary Rinsing Kit: Single-function handset, flexible smooth hose, and integrated wall outlet parking bracket
• Mounting Choice: Supplied complete with your choice of a heavy brass 350mm wall shower arm or vertical ceiling drop arm
• Automatic Safety Shutdown: System automatically cuts off water flow immediately in the event of hot/cold water supply failure or power interruption

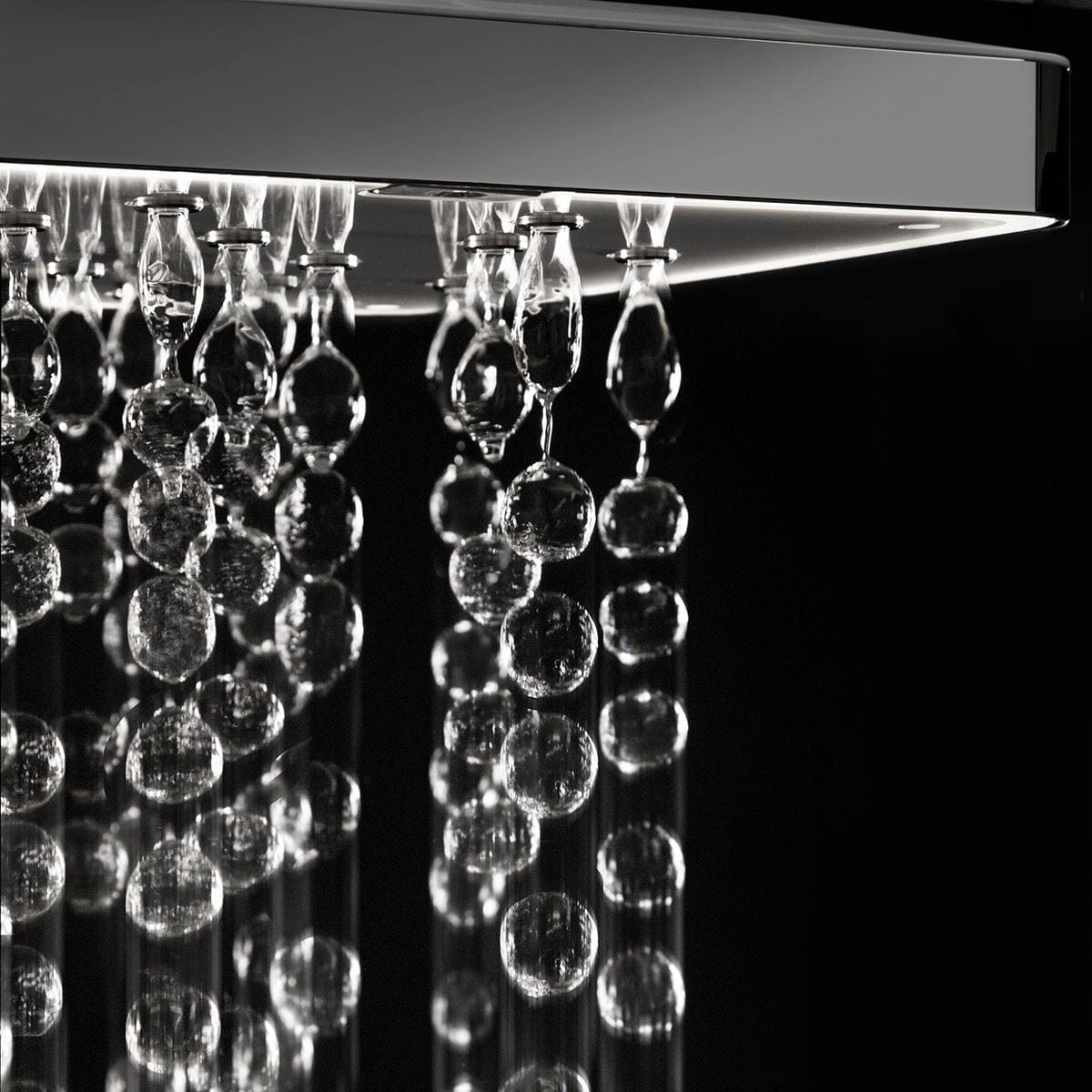

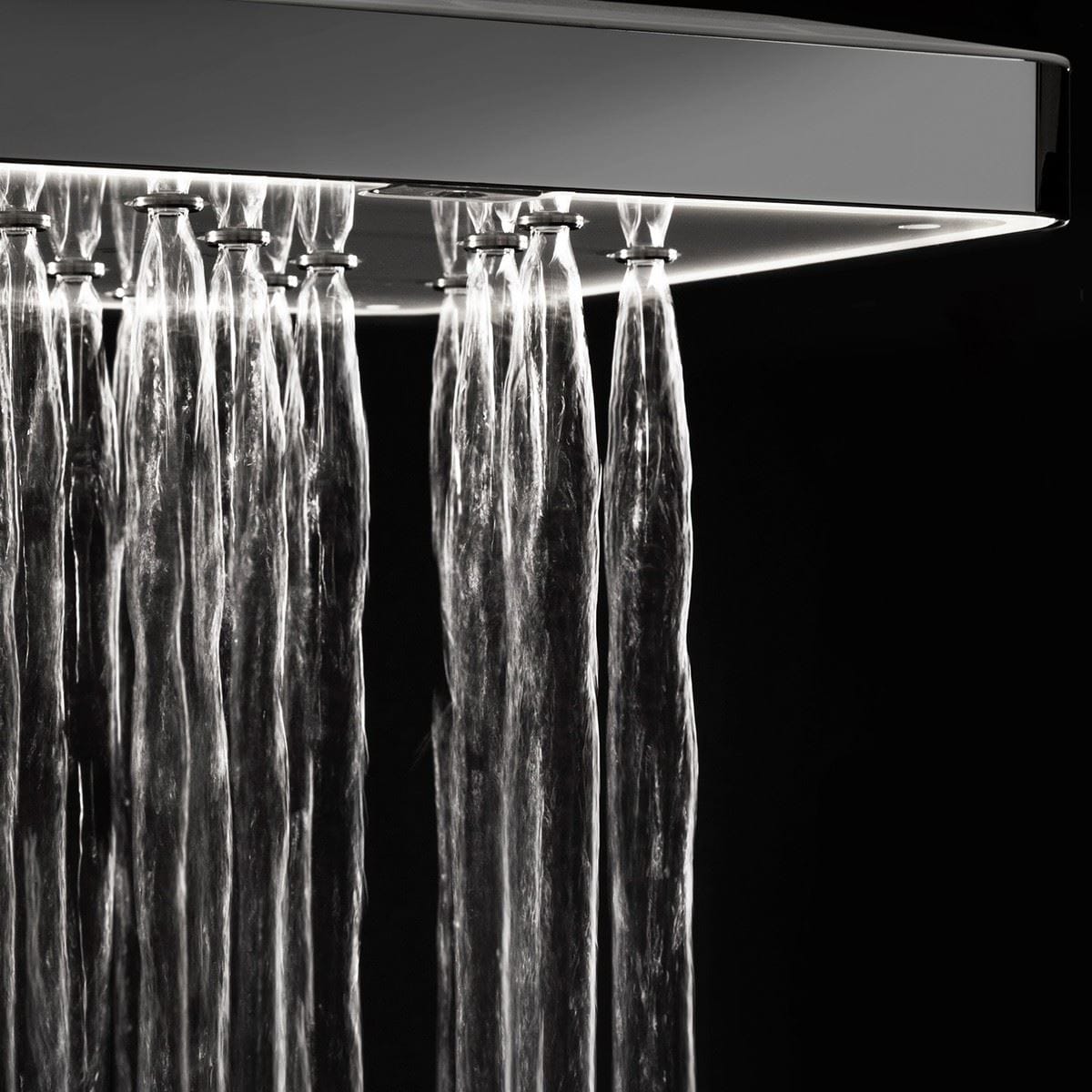

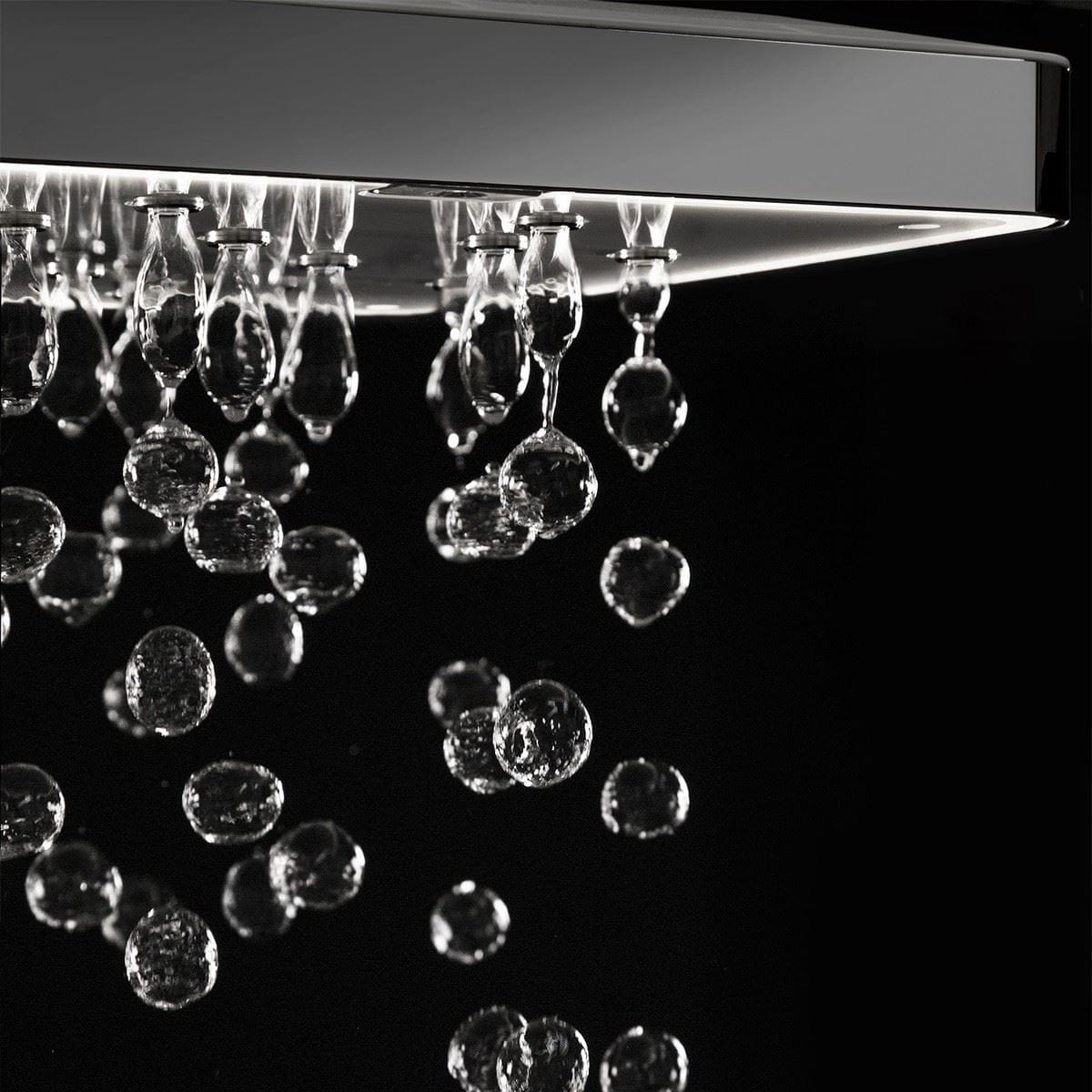

At the centre of the overhead experience is patented Air Powered™ technology. Sixteen computer modeled HydrO₂ nozzles inject air directly into the water stream, forming enlarged water bubbles. As these droplets release, they deliver a gentle "BubbleTapping" sensation across the skin - a soft, rhythmic spray pattern inspired by Swedish massage techniques designed to ease muscular tension. Integrated, water-lit LED lights illuminate each individual droplet as it falls, producing distinct visual illumination modes (including Drops, Chain, and Stream effects) alongside an acoustic tapping sound as the bubbles contact the skin.

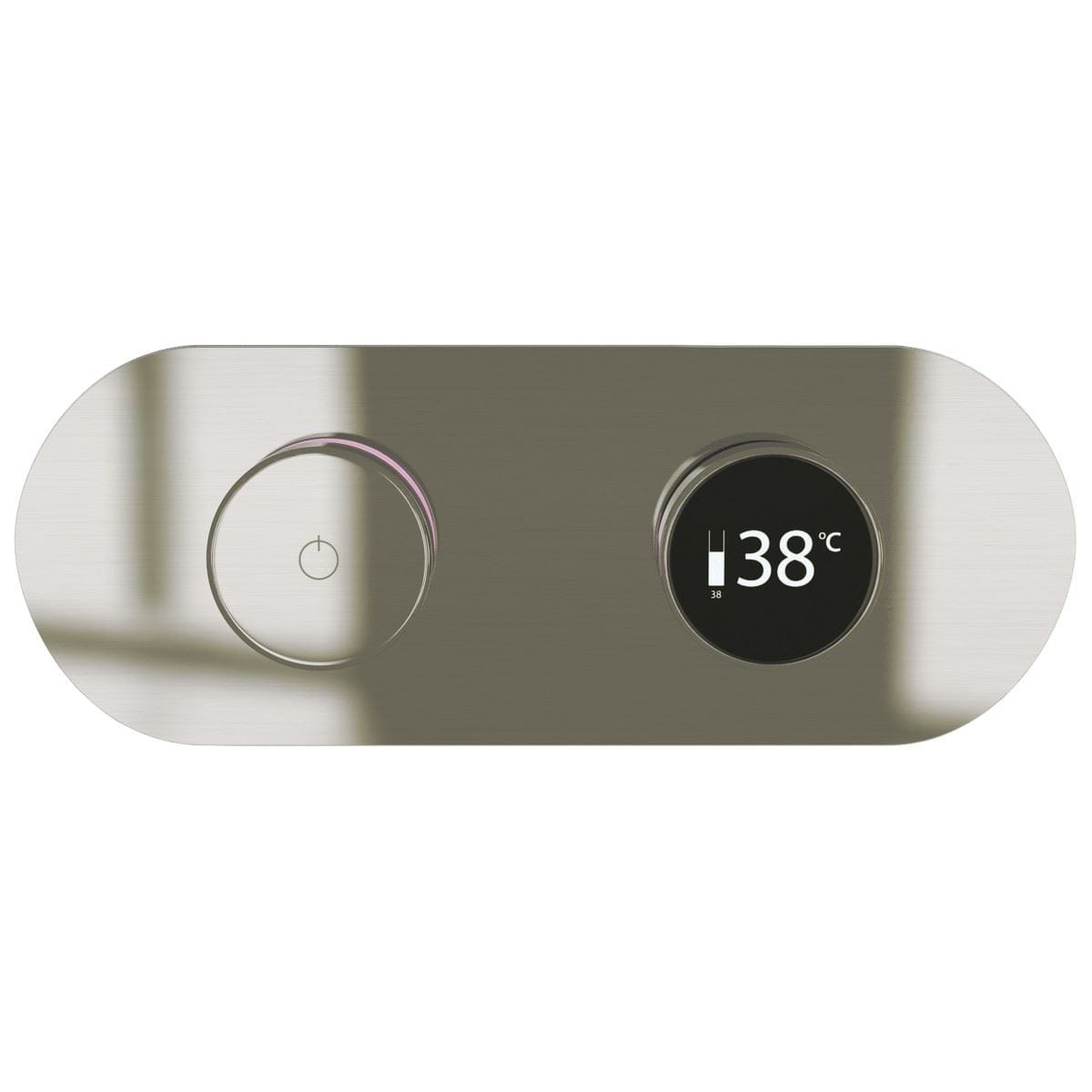

System management is handled by the wall-mounted Togo Oval digital interface. Featuring an OLED digital display and a central push-and-turn dial, the controller provides real-time temperature feedback and outlet indication. Around the dial, an LED ring transitions through colour gradients as water temperature changes, while internal software locks flow to the signature 38°C comfort baseline upon startup. Because the wall-mounted controller remains isolated from hot water feeds, the trim plate stays completely cool to the touch.

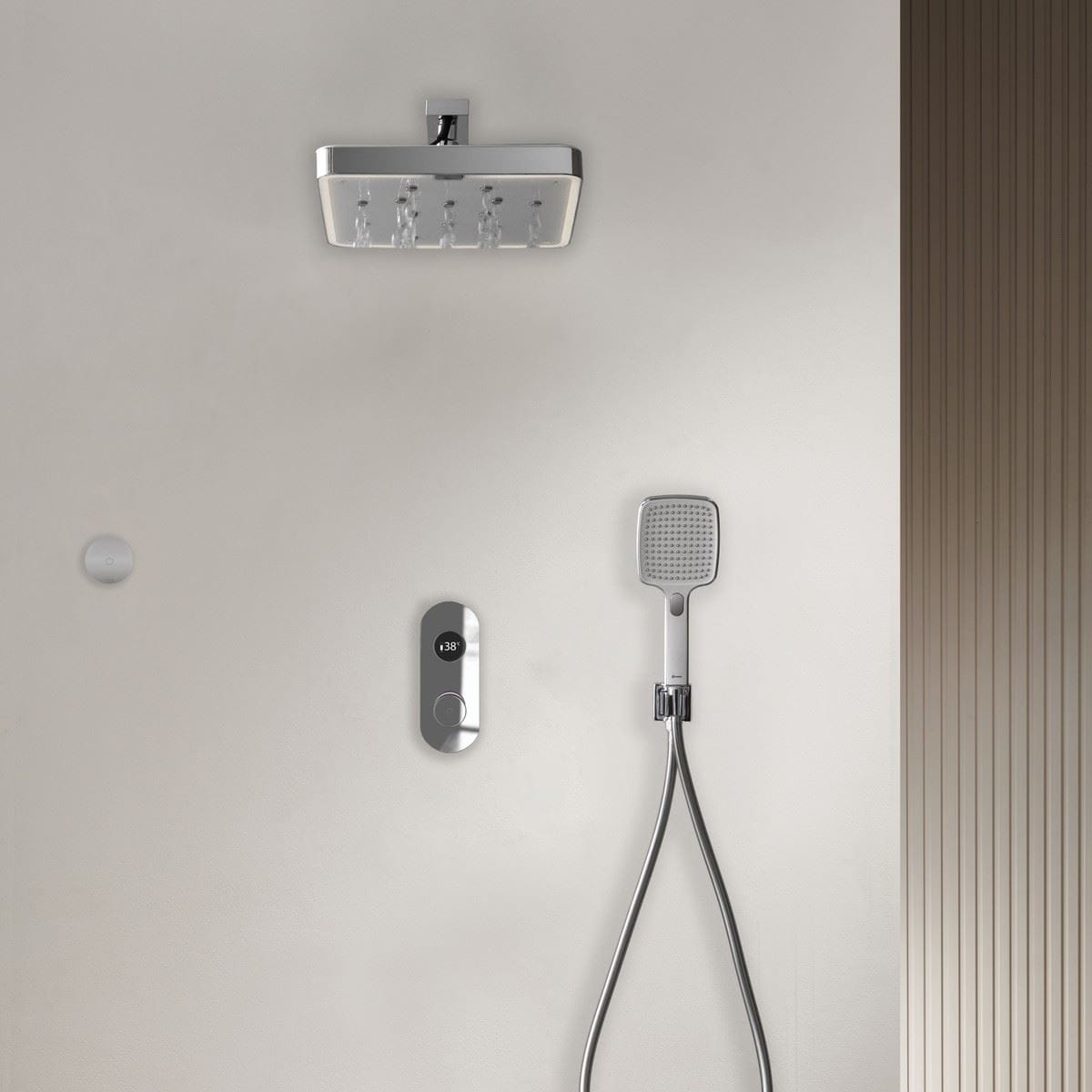

Completing the 2-outlet setup, the package includes a single-function handset, smooth anti-twist shower hose, and an integrated wall bracket with built-in water outlet. This configuration provides direct secondary rinsing while maintaining a clean, uncluttered tile appearance. The bundle is supplied with either a rigid 350mm horizontal wall arm or a vertical ceiling arm to suit your enclosure layout.

What's in the Box:

• Thirty Eight Degrees BubbleSpa® Overhead Shower Head with Integrated LED Module
• Selected Arm Assembly (350mm Horizontal Wall Arm OR Vertical Ceiling Drop Arm)
• Togo Oval Digital Controller Plate with Push-and-Turn Dial
• 2-Outlet Thermostatic Digital Mixing Processor Box
• Single-Function Pencil Handset
• Wall Parking Bracket with Integrated G  Inch Outlet Elbow
• Smooth Anti-Twist Shower Hose (150cm)
• Low-Voltage Power Module & Data Interconnect Cables

Installation & Technical Guidance:

To ensure straightforward fitting and accurate first-fix planning, the system requires specific plumbing and electrical provisions:

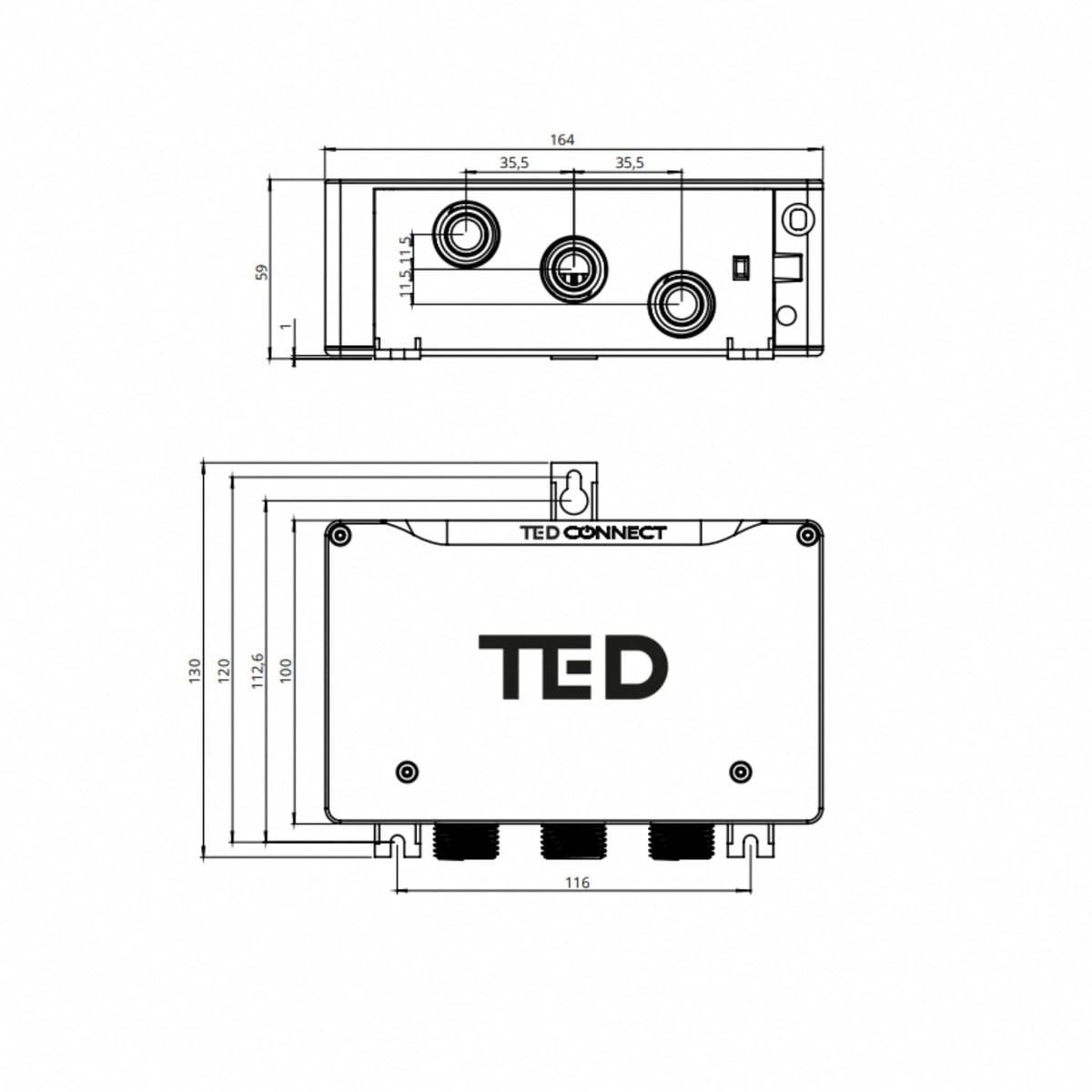

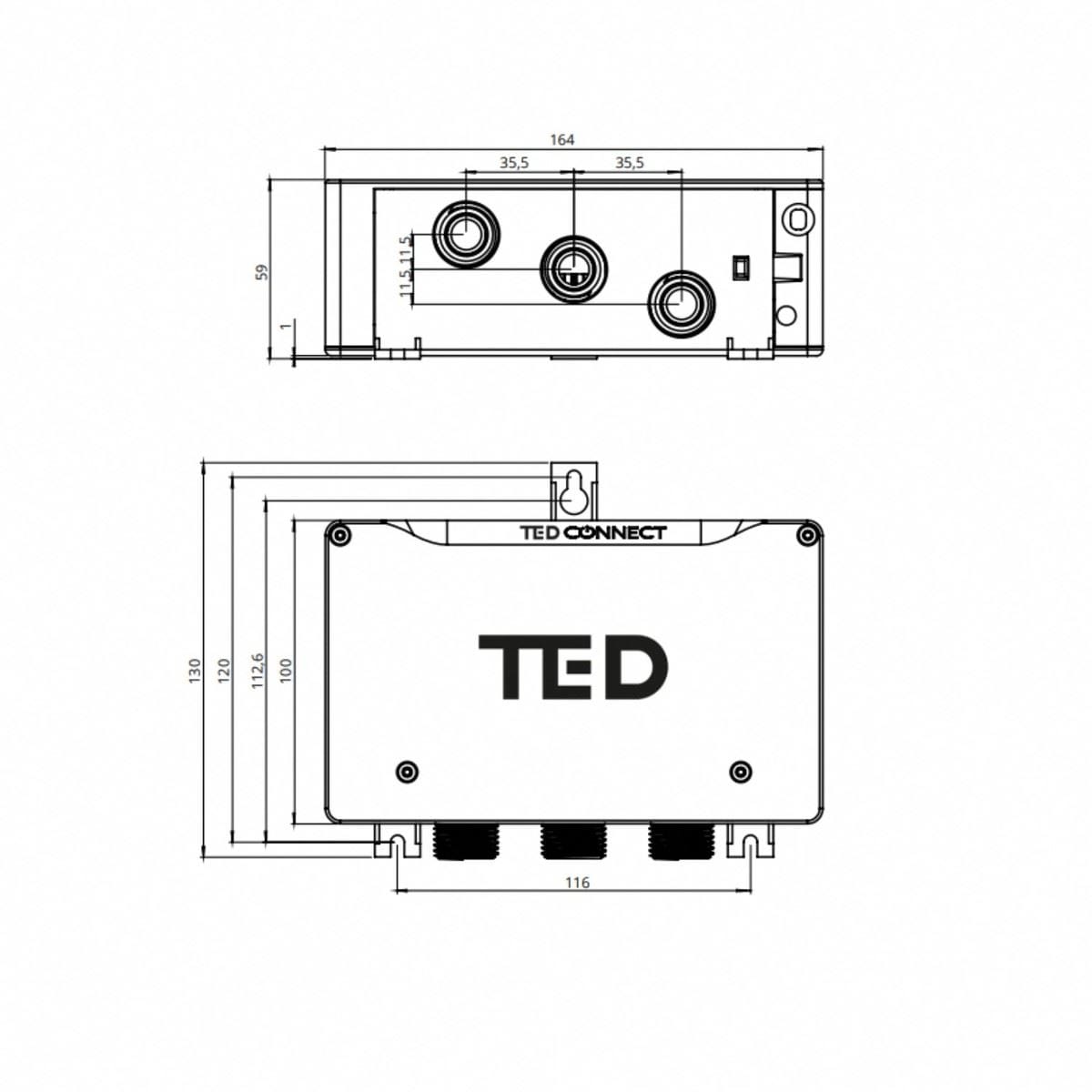

1. Digital Mixing Processor Host

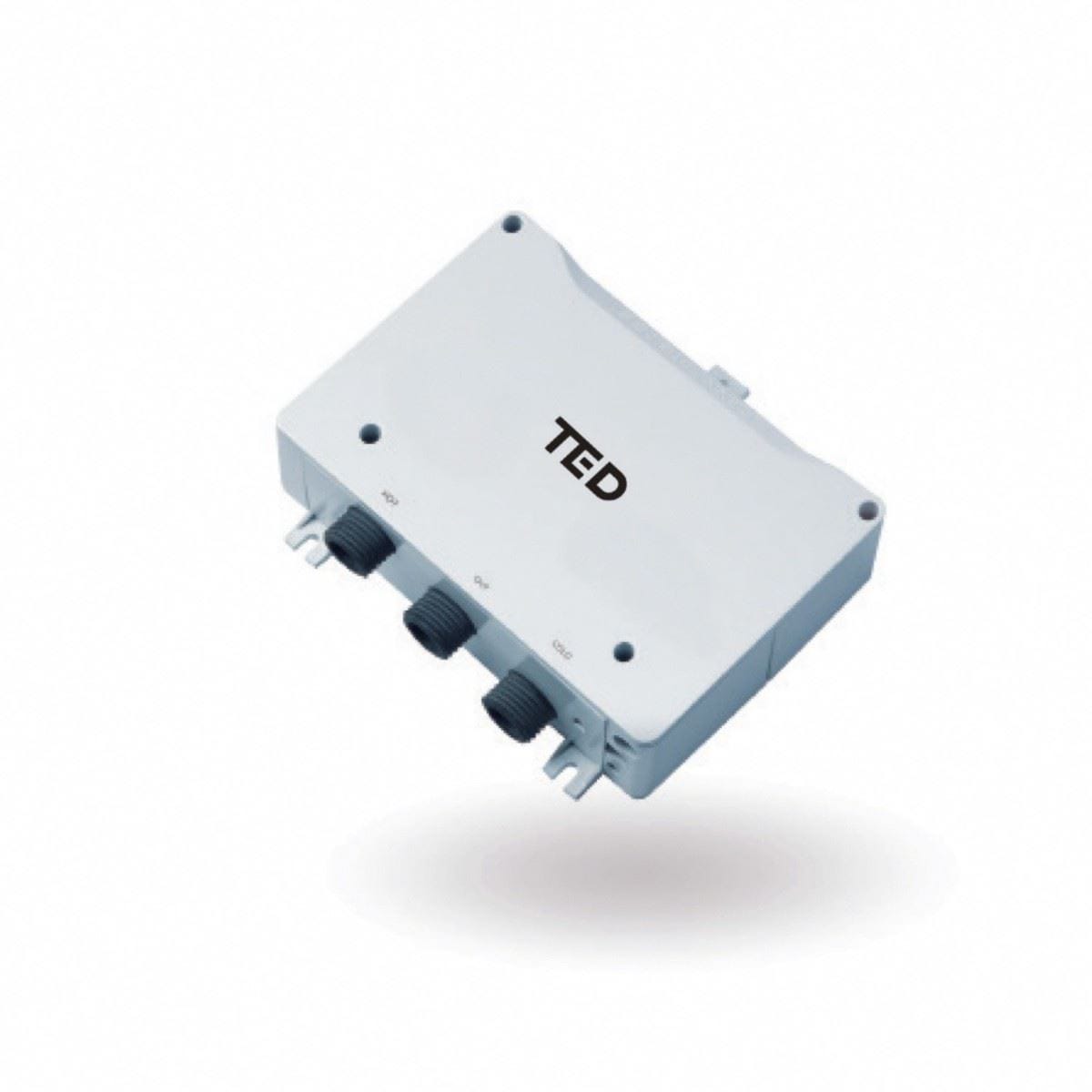

• Location: The digital processor mixing box is designed for installation outside the showering enclosure - typically situated in a dry, accessible loft space, airing cupboard, or under-bath panel.
• Plumbing Connections: Standard G  inch male isolation valves connect hot and cold mains feeds directly to the processor inlet ports.
• Water Pressure Requirements: Requires a balanced high-pressure water system (such as a combination boiler, unvented mains system, or boosted pumped supply) with a recommended minimum operating dynamic pressure of 1.5 bar to 2.0 bar to drive the Air-Powered™ nozzles effectively.

2. Electrical & Wiring Provisions

• Mains Connection: The digital processor unit plugs into a standard 230V AC supply via an unswitched fused spur (located outside bathroom Zone 1/2 in compliance with UK wiring regulations).
• Low-Voltage Cable Routing: Extra-low voltage data cables run from the processor box to the wall-mounted Togo Oval interface and the BubbleSpa® overhead LED module. No high-voltage mains power enters the shower enclosure.

3. Pipework & Arm Options

• Wall Arm Configuration: Requires a concealed  inch female backplate elbow securely fixed behind tile board at the intended head height, connected via internal pipework to Outlet 1 on the processor.

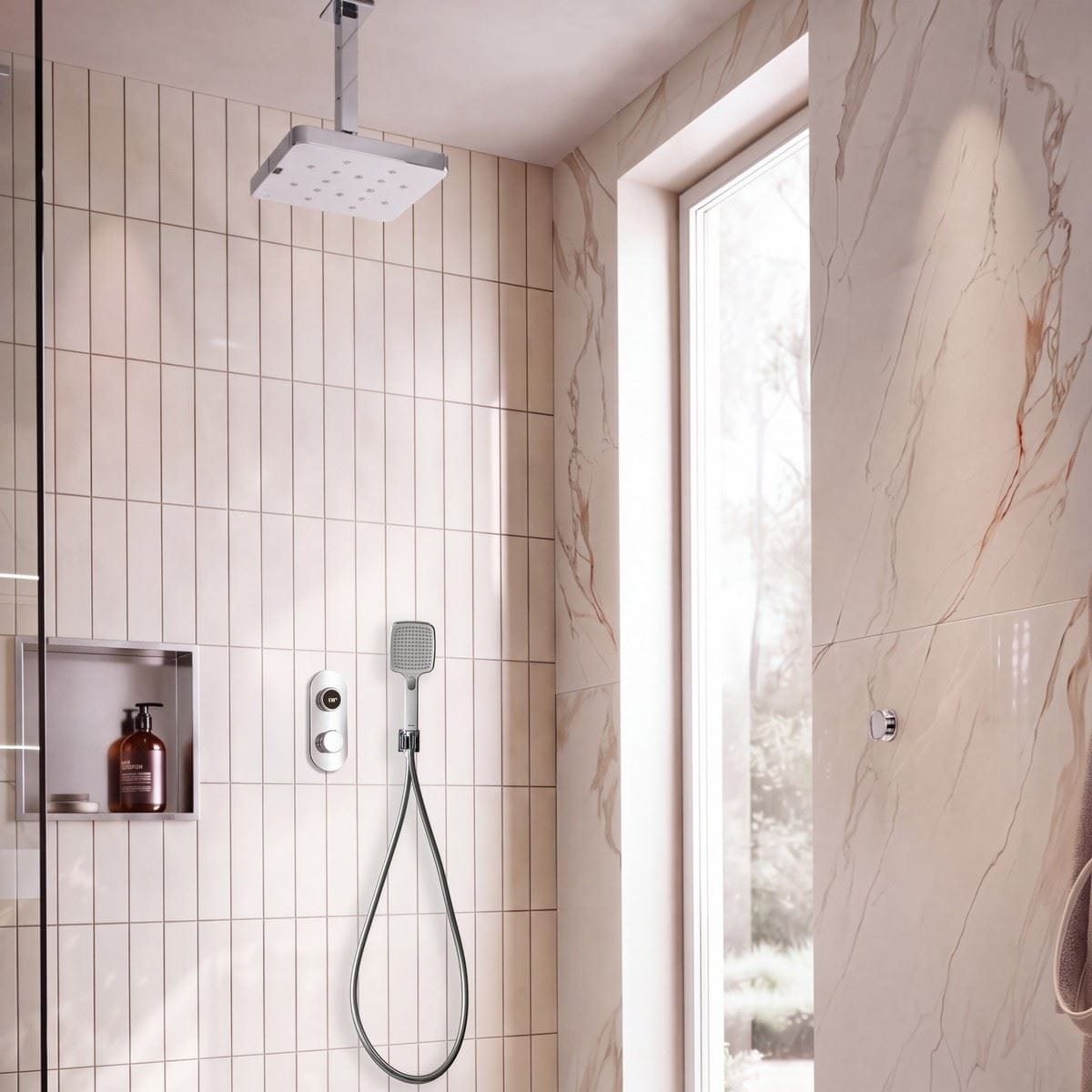

• Ceiling Arm Configuration: Requires a standard 30mm–32mm ceiling cutout to drop the vertical supply line through from the joist cavity above.
• Secondary Handset Outlet: A standard  inch female elbow is positioned at bracket height to receive the integrated combination bracket and hose outlet, piped to Outlet 2 on the processor.

Designed for seamless pairing across Thirty Eight Degrees digital ranges, this package integrates with TED digital processor setups to deliver an elevated, safe, and controlled hydrotherapy experience (all main processor components, user interface, overhead head, arm, hose, and handset included).
