TED Togo 2/3 Outlet Concealed Digital Shower Valve with Square Plate

The TED TOGO Square brings digital control to the bathroom through a tactile interface designed to make showering feel effortless. Temperature, water flow and outlet selection are controlled from the Square interface, while the processor and mixing technology remain stored in an easily accessible place.

Press the control dial to start the water at the default 38°C, turn it to adjust the temperature and use the control to select your required outlet. The surrounding LED illumination provides an immediate visual indication of the temperature, while the OLED display shows the temperature and outlet selected. Up to three outlets can be controlled from a single interface, giving TOGO the flexibility to work with everything from a two-outlet shower to a more comprehensive shower and bath setup.

Key Features

• Digital temperature control: The digital mixing system continually regulates the water temperature for consistent showering, with temperature stability of approximately ±1°C under recommended conditions.
• 38°C start-up temperature: TOGO automatically starts at 38°C, providing a comfortable everyday starting point that can be adjusted to suit your preference.
• Illuminated temperature control: The backlit control dial changes colour to reflect the selected temperature, providing clear visual feedback as you adjust the shower.
• OLED digital display: The display shows the set and actual water temperature alongside the selected outlet, keeping essential information visible at a glance.
• Up to three outlets: The integrated digital diverter can control up to three outlets, with intuitive outlet selection through the push-and-turn control.
• Cool-touch controls: The Square interface and trim plate are isolated from the water valve, keeping the exposed controls cool to the touch.
• Automatic safety shutdown: The system automatically shuts down if the water or power supply is interrupted, providing an additional layer of protection.
• Flexible installation: The Square interface can be mounted horizontally or vertically, with the digital processor concealed separately from the visible control.

A more intuitive showering experience

TOGO is designed to remove unnecessary complexity from digital showering. The control dial gives you direct physical feedback as you adjust the temperature, while the changing LED illumination makes the setting immediately recognisable. Once your preferred temperature is reached, a press of the dial switches the system to the default outlet, with the OLED display confirming which outlet is active.

The system remembers the way the shower is configured, allowing the different outlets to be programmed around the installation. This makes TOGO equally suited to a straightforward overhead and hand shower arrangement or a more comprehensive setup with a third outlet.

Why does TOGO start at 38°C?

Every TOGO system starts at 38°C. TED's Thirty Eight Degrees philosophy is built around this temperature as a balance between comfort, safety and energy efficiency. It provides a familiar starting point for everyday showering, while the temperature can still be adjusted to suit individual preference.

Digital technology, kept out of sight

The Square interface is only the visible part of the system. The mixing technology and diverter can be concealed elsewhere in the installation, leaving the bathroom with a compact control rather than a conventional exposed thermostatic valve.

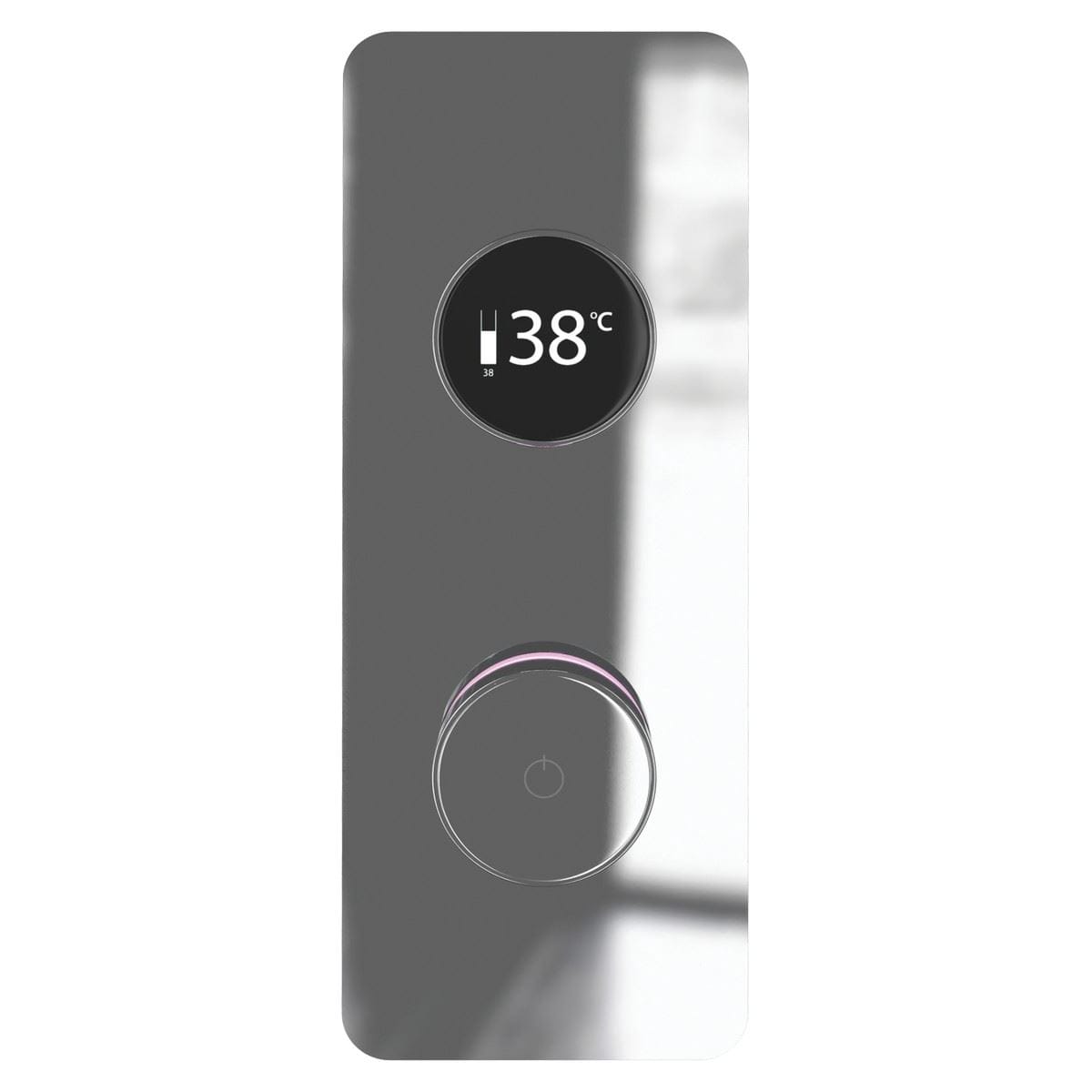

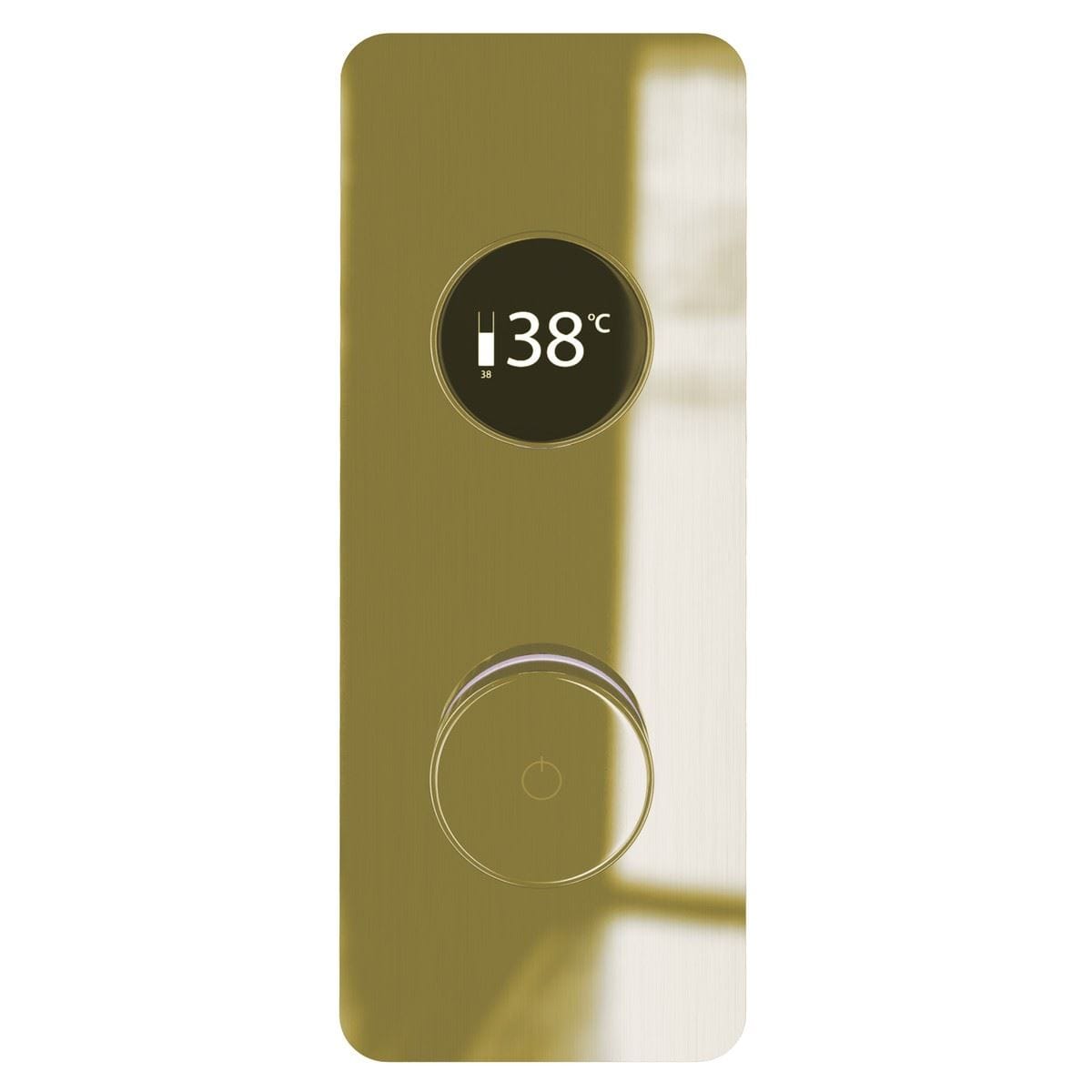

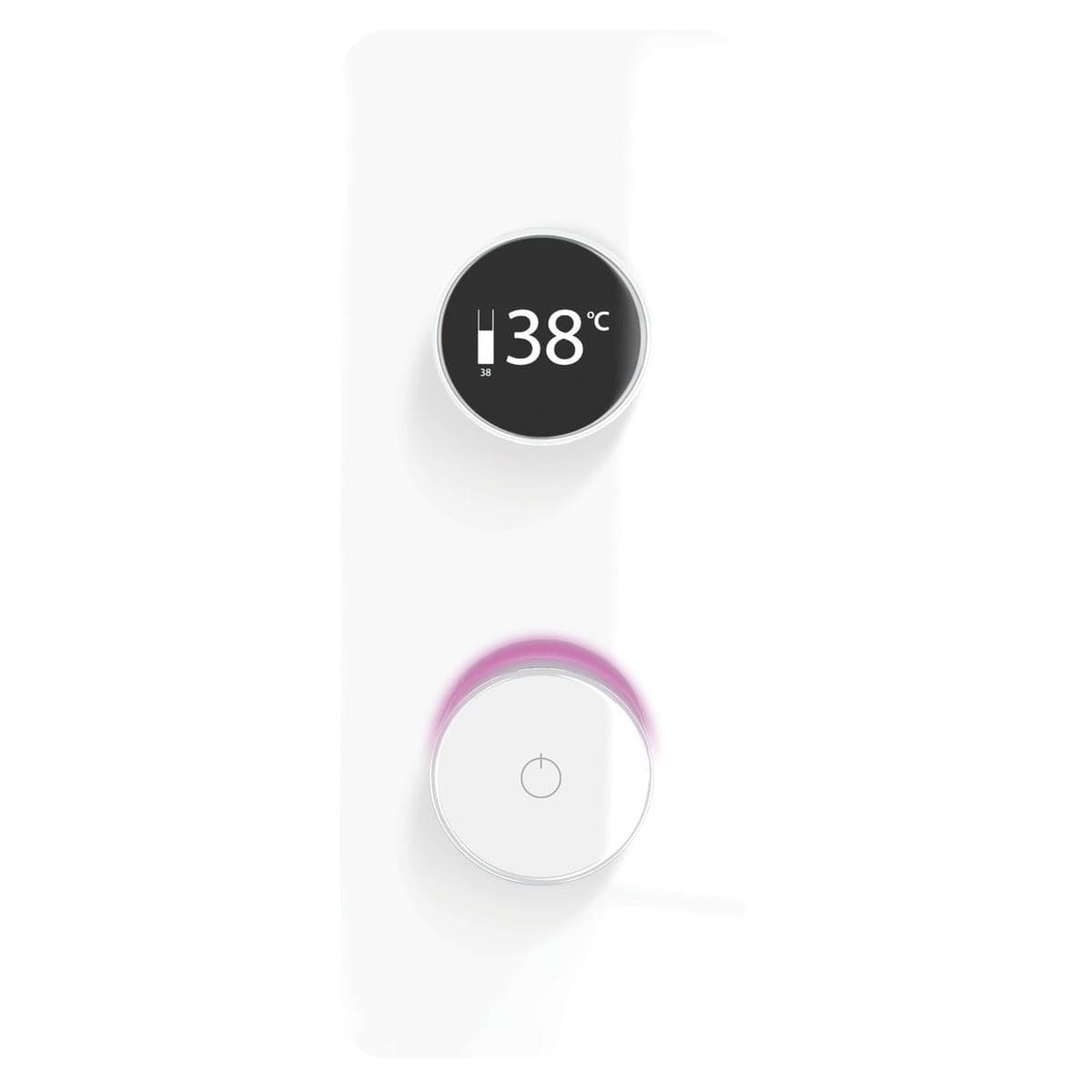

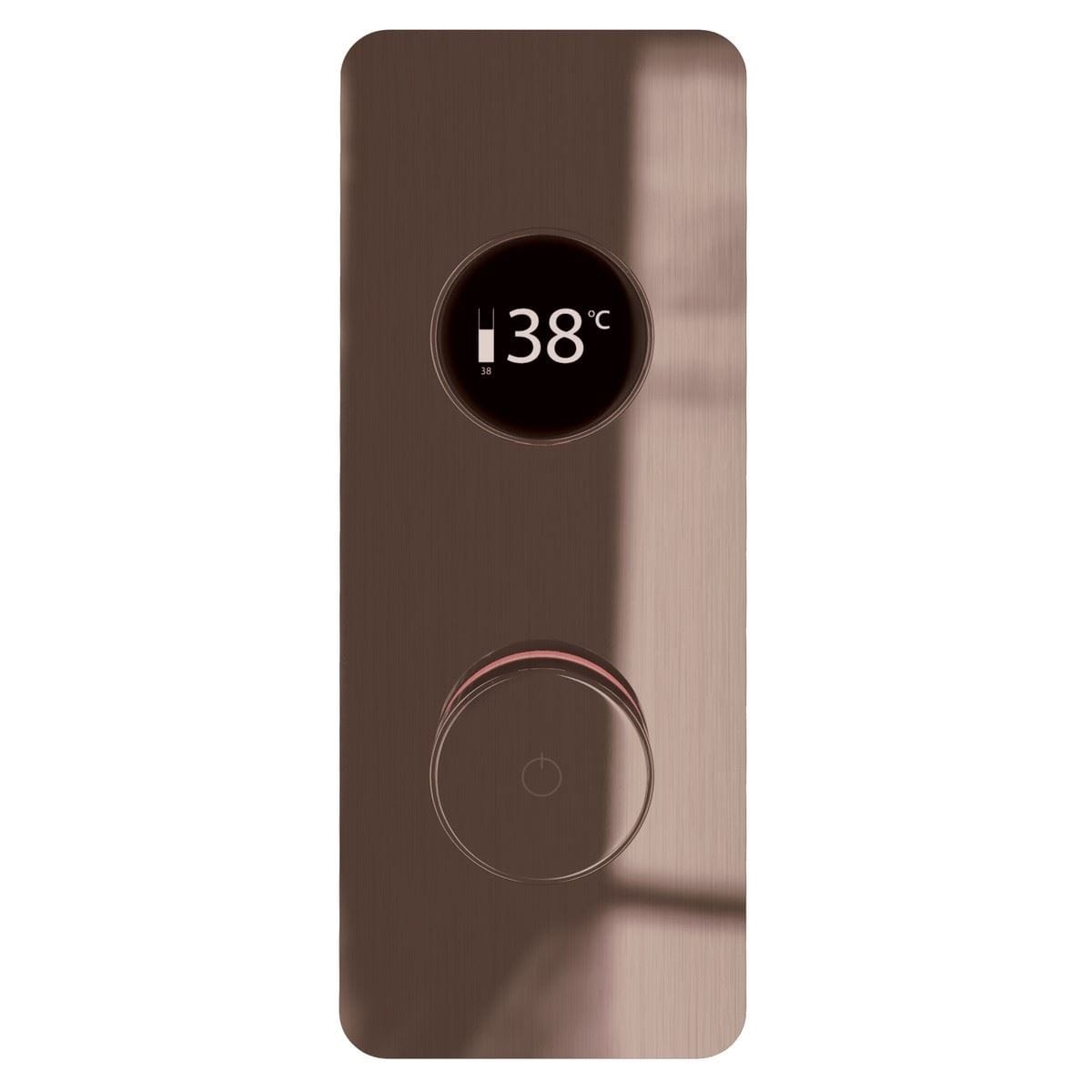

The Square measures 190 x 75mm and can be installed horizontally or vertically. It is available in seven finishes, including Chrome, Matt Black, Brushed Brass, Brushed Nickel, Gunmetal Grey, Brushed Bronze and Matt White.

Installation

TOGO Square is a concealed digital shower system and should be installed by a suitably qualified professional. The processor can be positioned remotely from the control in a suitable service location, with the control connected using the supplied data cable.

The control requires a minimum 40mm wall depth and 42mm diameter installation hole. The system uses ½" BSP water connections, while the suitability of the existing water system and required outlets should be established before installation.

For added convenience, the TED TOGO Wireless Button is compatible with the Square system and is available separately. The self-powered button can be positioned outside the showering area, allowing you to start the shower without stepping inside and giving the water time to reach its 38°C starting temperature.

What's included

• TED TOGO Square digital control
• Square stainless steel control plate
• Digital processor and mixing system
• Digital diverter for up to three outlets
• Control and processor connection cables
• Power supply
• Colour-matched trims

The TED approach

TED's approach to digital showering is centred on making advanced technology useful rather than complicated. TOGO places the precision of digital temperature control and multi-outlet operation behind a simple physical interface, giving you greater control without adding complexity to the way you use your shower.
