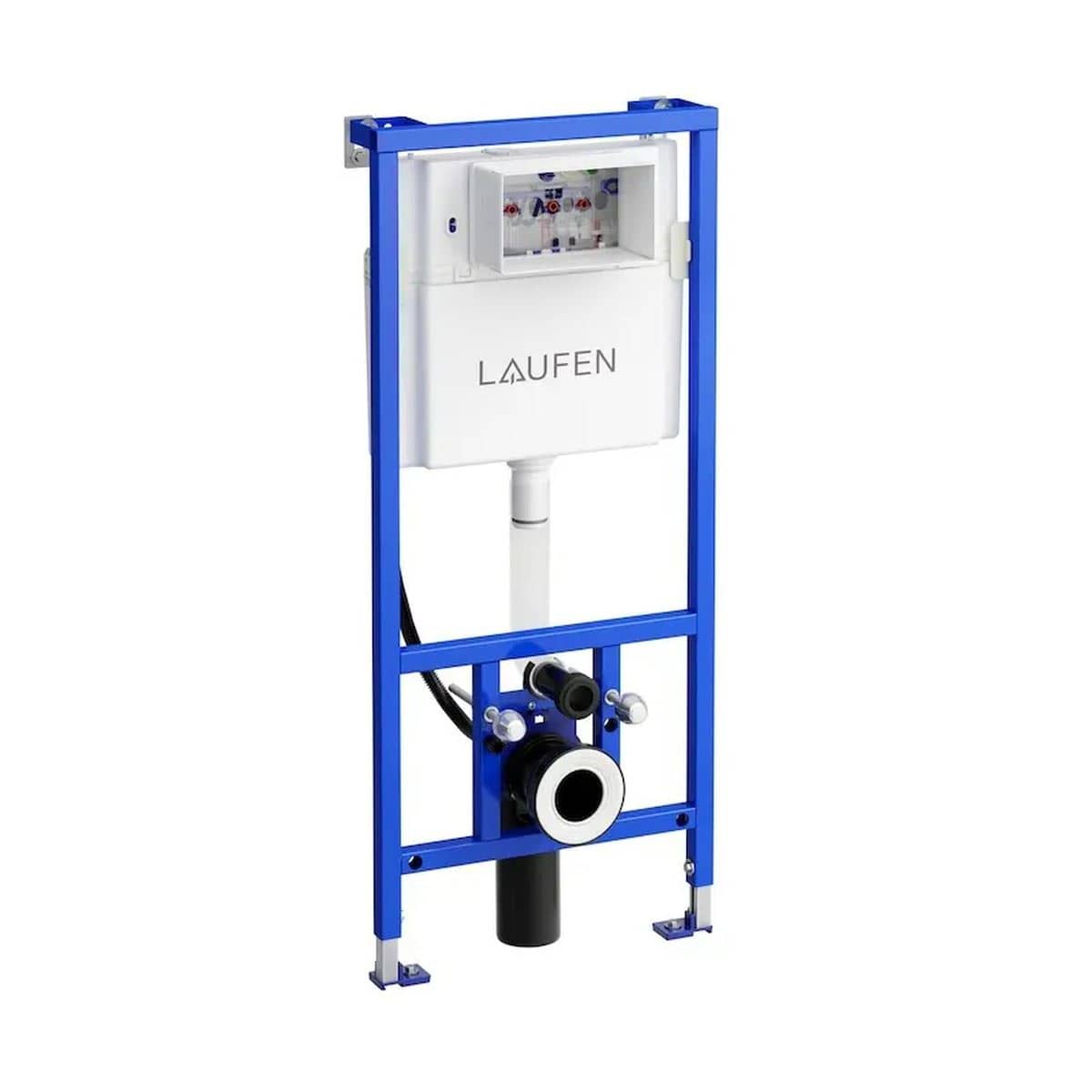

Laufen 1120mm Wall Mounted Frame and Cistern

Investing in Laufen brings world class Swiss manufacturing heritage and uncompromised authority behind your bathroom wall. This Wall Mounted Concealed Installation Frame acts as the structural anchor for a wall hung toilet, providing complete stability behind the tile facade. It offers universal mounting for Laufen ceramic collections including Pro, Pro S, and Kartell, alongside dedicated shower toilet models such as the Cleanet Navia and Cleanet Riva.

The robust steel chassis is engineered to carry up to 400kg, eliminating frame flex or movement once installed. An ultra slim polypropylene dual fuel cistern sits within the frame profile, fully insulated to prevent condensation inside the wall cavity. Built as a future proof foundation for smart technology, it features a pre installed internal conduit that routes dedicated water supply lines directly through the frame to keep external plumbing hidden.

(Note: Integrating electronic shower toilet functions or touchless flush plates requires a separate electrical connection kit, which is sold separately.)

Each installation set includes the full chassis, insulated dual fuel cistern, internal bidet guide pipe, inlet and outlet pipe connectors, tiling box, and all wall and floor mounting fixings.

Key Features:

• Swiss Engineering Heritage: Anchors your space with Laufen's internationally revered manufacturing authority, securing wall hung toilets with complete structural integrity.
• Future Proof Smart Toilet Readiness: Built as a forward thinking foundation for smart technology, featuring an internal guide pipe to route concealed water lines directly to shower toilets like the Cleanet Navia and Cleanet Riva.
• Universal Model Compatibility: Fits standard wall hung WC pans as well as electronic shower toilets.
• Rigid Steel Chassis: Constructed from self supporting powder coated steel profiles tested to support static loads up to 400kg.
• Galvanized Adjustable Legs: Rotatable floor legs offer vertical height adjustment from 0 to 200mm to set exact pan rim heights.
• Insulated Dual Fuel Cistern: Polypropylene tank features an ultra slim 110mm profile fully wrapped in insulation to stop moisture build up while accommodating water and electrical supply feeds.

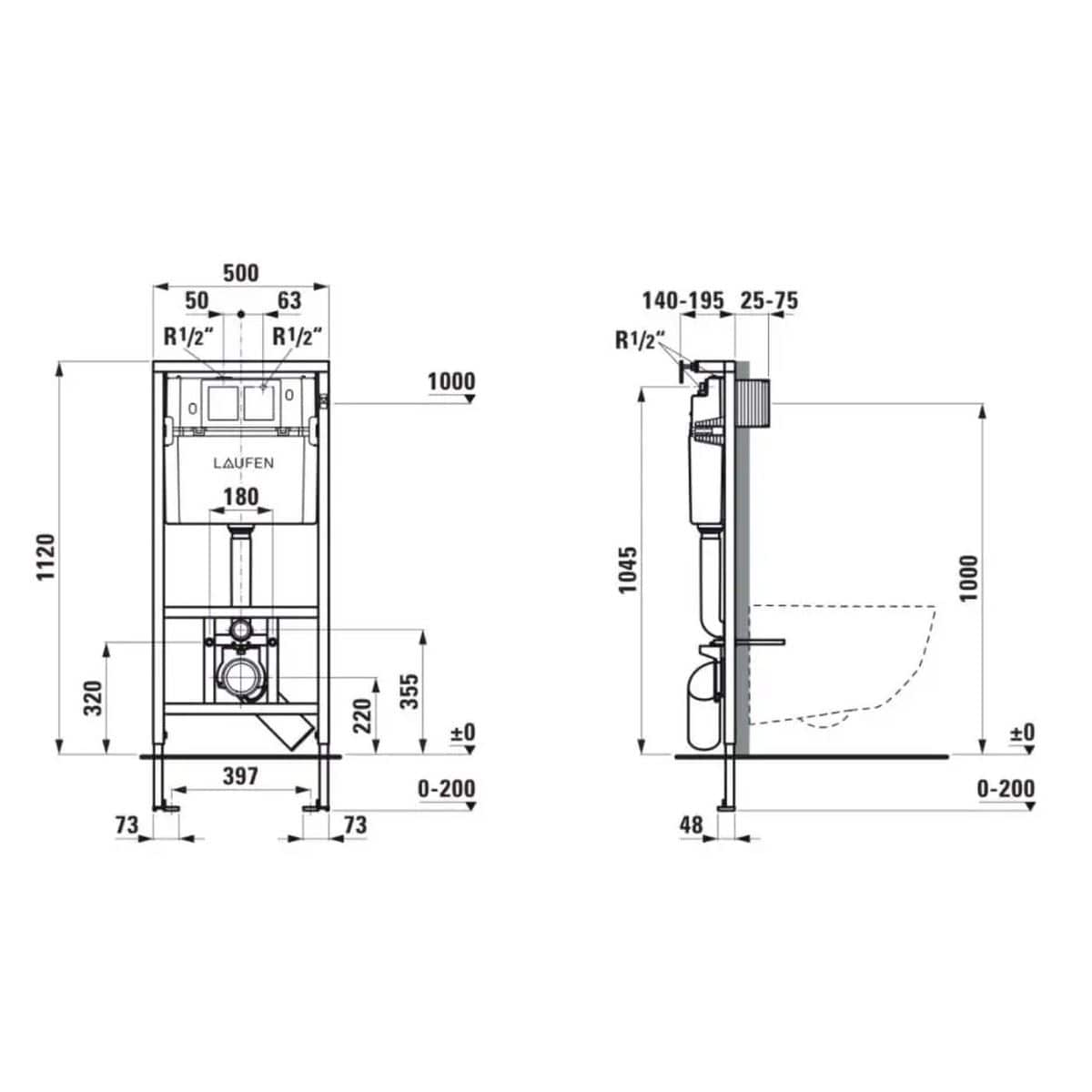

• Adjustable Mounting Depth: Frame depth adjusts from 140mm to 195mm to fit varied stud work or solid brick wall cavities.
• Dual Flush Water Control: Pre set to a 6/3 Litre dual flush volume, with internal valve adjustments available down to 4.5/3L or 4/2L flush cycles.
• Front Access Actuation: Accommodates front facing mechanical flush plates alongside touchless electronic actuator panels.
• Brass Water Connection: Rear R 1/2 inch brass thread inlet operating across 0.5 to 10 bar water pressure.
• Protected Internal Mechanics: Fitted with silicone flush valve seals and integrated anti siphon refill protection to preserve hydraulic performance.
• Standard Pipe Connections: Supplied with DN 90 / 110 waste pipe connectors alongside wall and floor structural fixings.

About Laufen

Established near Basel in 1892, Laufen is the premier Swiss authority in sanitaryware manufacturing. The brand remains the sole manufacturer producing ceramics within Switzerland, driving industry standards through proprietary material innovations such as SaphirKeramik and Marbond. Working alongside leading international design studios, Laufen transforms complex industrial engineering into precise bathroom solutions defined by Swiss heritage.
