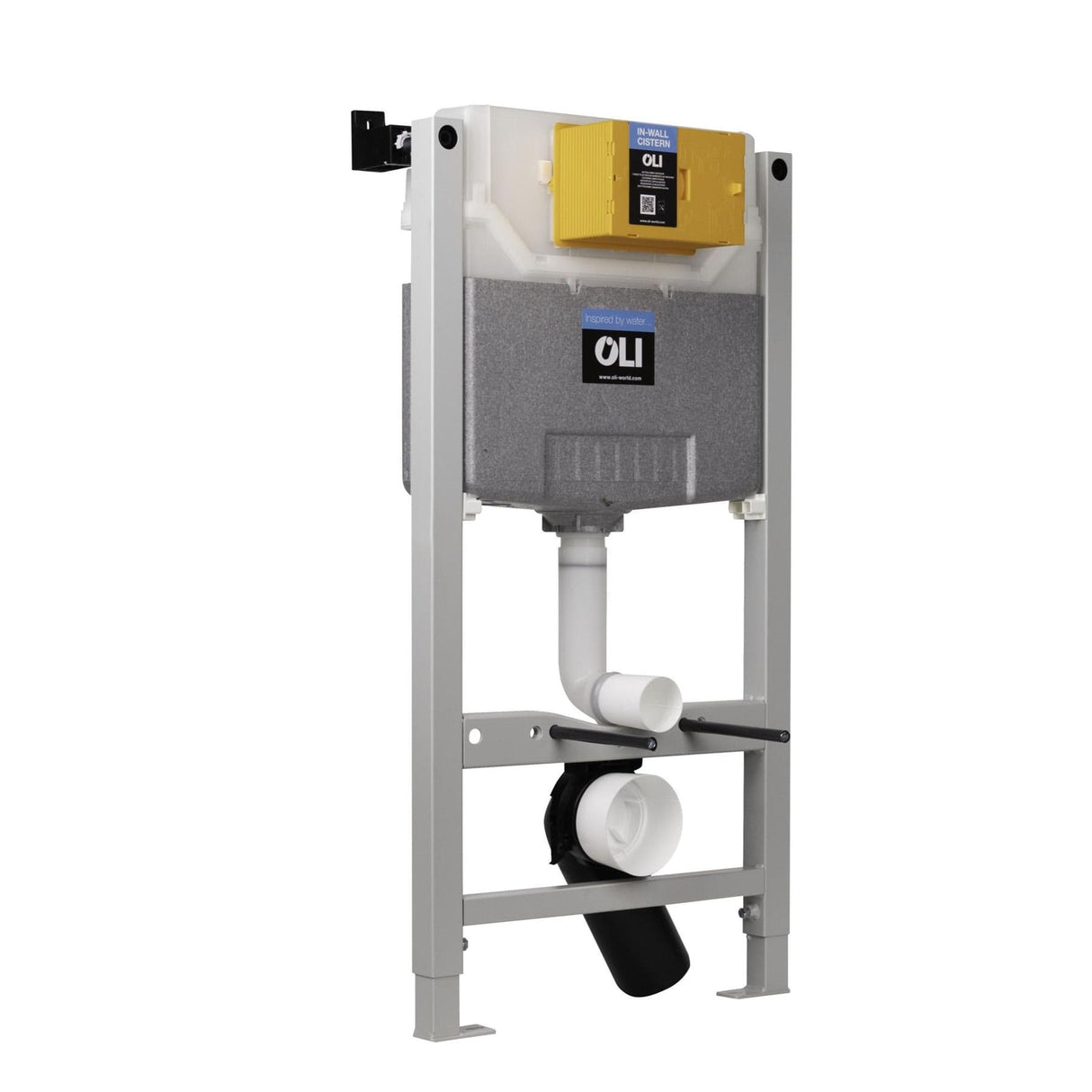

JTP Oli Wall Mounted 980mm Frame and Cistern

The JTP 980mm WC Frame & Cistern is a medium height concealed mounting solution engineered for the installation of wall hung WC pans. Standing at 980mm, this frame offers a versatile alternative to standard height units, providing robust structural support and integrated water management for modern bathroom configurations.

Technical Overview

This freestanding frame is designed to be installed within a stud wall or secured against a solid wall. It serves as a self supporting chassis that handles the weight load of the ceramic pan while housing an insulated cistern.

Key Technical Features

• 980mm Intermediate Height: This specific height is ideal for installations where a standard 1120mm frame is too tall, yet more clearance is desired than a compact 820mm model.
• WRAS Approved: This unit is fully WRAS (Water Regulations Advisory Scheme) approved. This certification ensures that the materials and components used meet the highest legal requirements for water safety and efficiency in the UK, preventing contamination and unnecessary water waste.
• Front Facing Plate Mounting: Specifically engineered for front facing installation only.
• Dual Flush Capability: The cistern features a dual flush mechanism (3/6 litres), allowing the user to select the appropriate water volume to ensure efficient waste removal while maintaining low water consumption.

• Structural Integrity: The powder coated steel frame is built to withstand high weight loads, ensuring the wall hung pan remains secure and stable over time without stressing the finished wall surface.
• Seamless Maintenance: The front mounted flush plate serves as a service hatch. By removing the plate, internal components can be accessed and maintained without the need to remove tiles or furniture.
• Acoustic Insulation: The cistern is designed with insulation to reduce noise transfer during the refill process and to prevent the buildup of condensation inside the wall cavity.
• Flexible Installation: Provided with floor and wall brackets as well as a WC waste bend, the frame offers a comprehensive kit for straightforward installation by plumbing professionals.

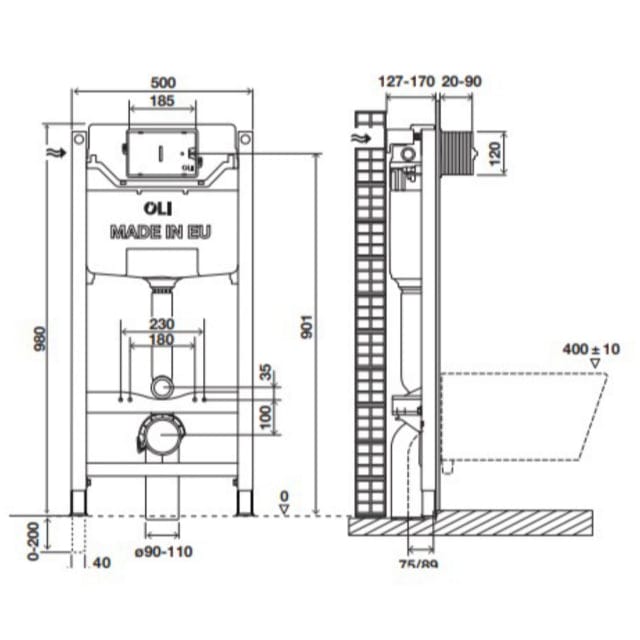

Technical Specifications

• Product Code: WCF980
• Frame Height: 980mm
• Mounting Type: Front-facing flush plate only
• Approval: Fully WRAS Approved
• Installation: Pre-wall or Freestanding
• Inclusions: Mounting brackets and WC waste bend included

About JTP

Just Taps Plus (JTP) operates with a strict mission to ensure there is no compromise on their manufacturing. By focusing on the production of high quality taps, showers, and accessories, they maintain total control over the process starting from the design stage. They ensure only top raw materials and parts are used in their products and manufacturing. This dedication means that regardless of the design chosen from their collections, ultimate quality comes as standard.

Compatible Flush Plates Sold Separately
