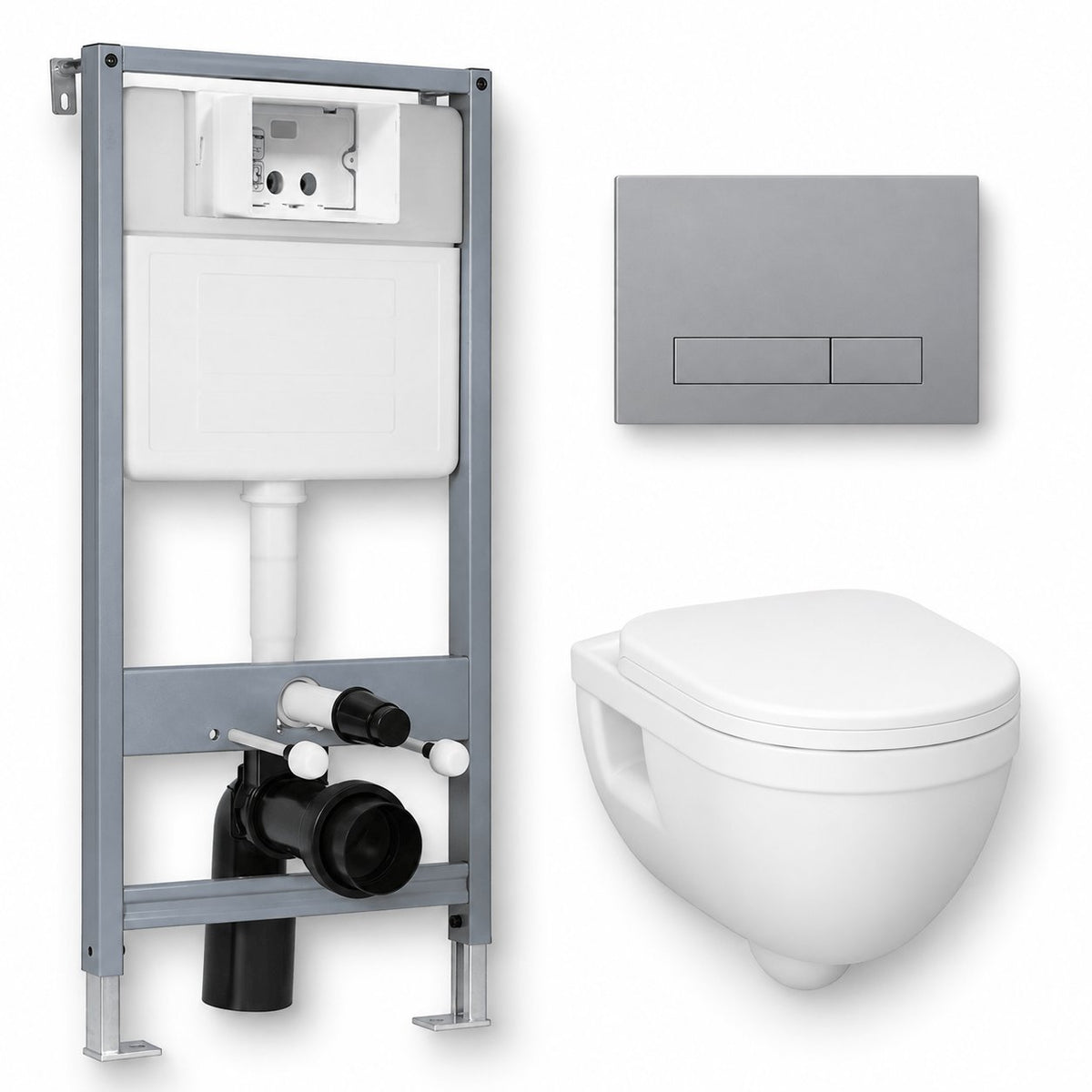

Imex Ivo Rimless Wall hung Toilet Pack with Frame, Flush Plate, and Soft Closing Seat

Imex designs sanitaryware around the principle of responsible water conservation through precision engineering. This Ivo Wall Hung Toilet Bundle puts that philosophy into practice by pairing efficient rimless ceramic technology with advanced concealed framework. Designed to optimize floor space in modern layouts, this package delivers outstanding hygiene, reduced water consumption, and dependable strength behind the wall.

Ivo Wall Hung Rimless Toilet Pan: Part of the broader Ivo collection known for subtle curves and space saving proportions, this ceramic pan features fully concealed fixings that create smooth exterior side walls. Inside the bowl, the open rimless design replaces traditional overhanging rims, preventing limescale buildup and bacterial growth. Integrated water channels direct the flush stream smoothly around the inner bowl, ensuring thorough surface washing while operating effectively on reduced flush volumes.

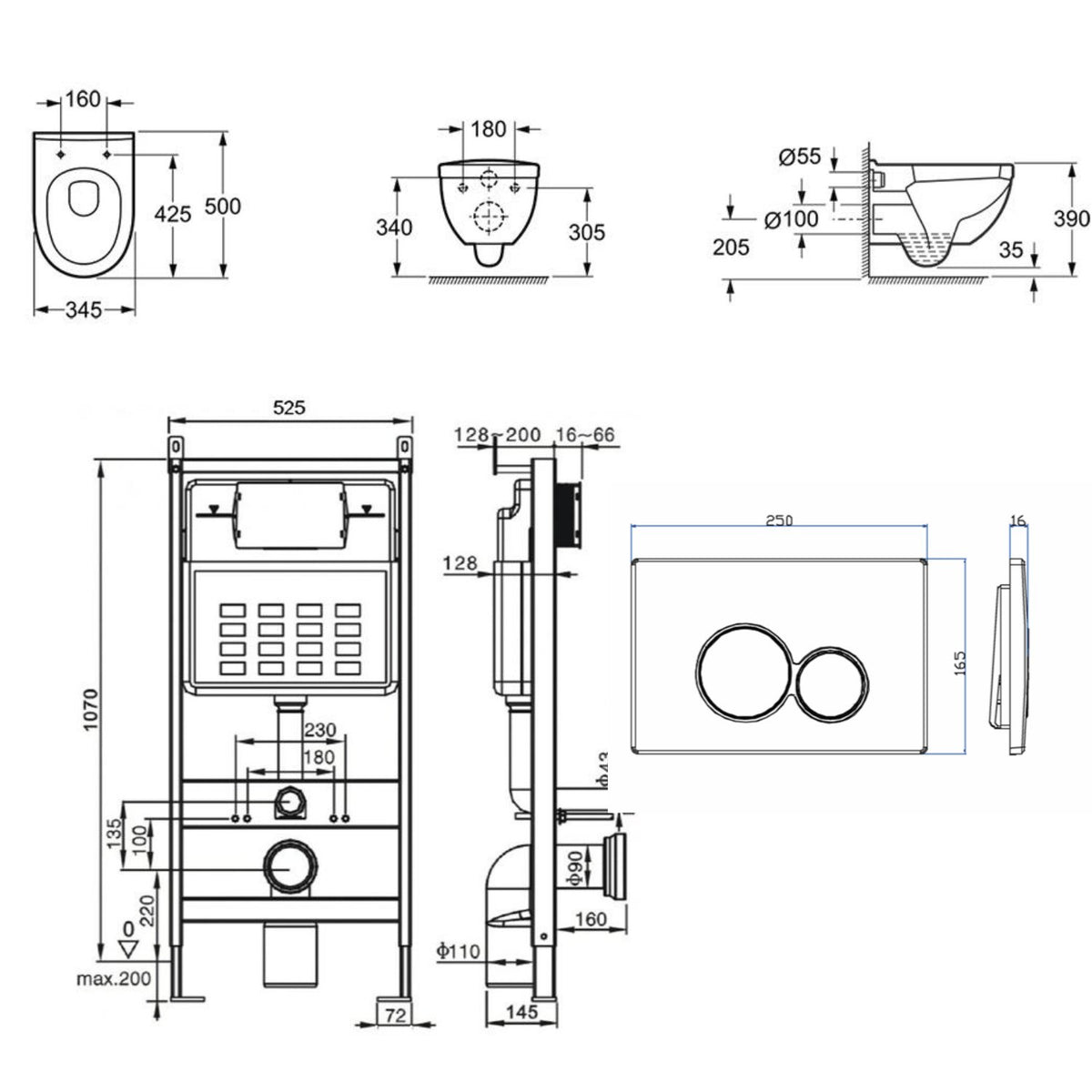

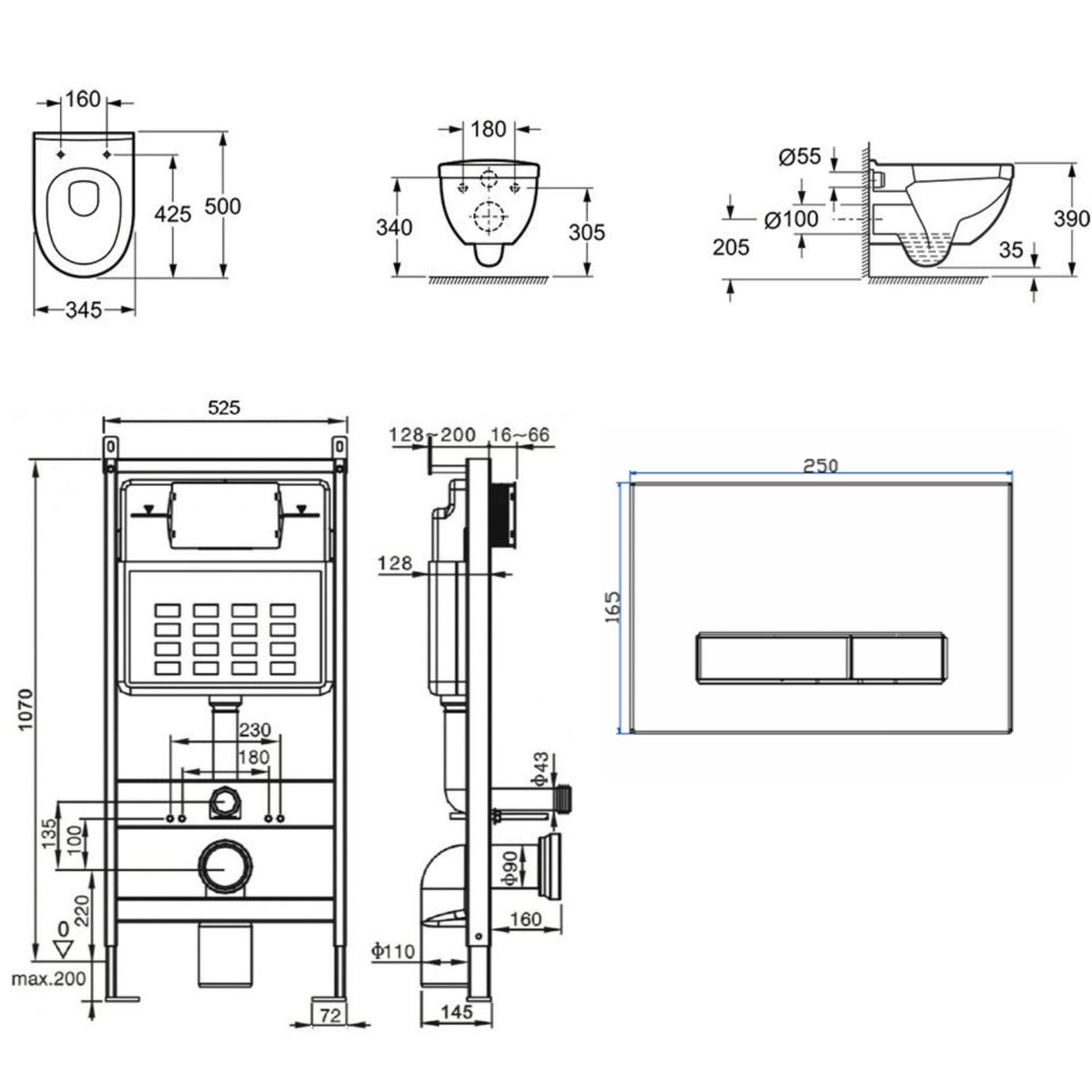

Imex IMFF01 Concealed Frame and Cistern: Engineered for ultimate structural stability, the IMFF01 powder coated steel frame supports loads over 400kg and features adjustable height legs ranging from 1070mm to 1270mm. Its ultra slim 125mm depth enables installation within narrow wall voids down to 180mm. The integrated cistern body includes full insulation to prevent condensation inside the wall cavity, housing WRAS approved dual flush valves pre set to 6 and 3 litres, adjustable down to eco friendly 4 and 2.5 litre flushing. Access to internal working components remains straightforward through the front panel behind the flush plate, avoiding any structural damage during future maintenance.

ABS Reflective Chrome Flush Plate: Serving as the visible wall control, this ABS plate comes in a reflective chrome finish with a choice of round or square button cutouts. The smooth dual action buttons provide direct pneumatic actuation to trigger either full or reduced water volume flushes.

Soft Close Quick Release Toilet Seat: Designed specifically to match the contours of the Ivo ceramic pan, this seat utilizes smooth internal dampening mechanisms to prevent noisy slamming and potential ceramic damage. The quick release hinge system allows the entire seat assembly to detatch instantly from above, streamlining deep cleaning sessions.

Streamlined Pre Built Bundle: Selecting a pre built installation bundle eliminates component matching uncertainties while guaranteeing total physical and hydraulic compatibility between pan, frame, cistern, and flush control. Having every mounting bracket, fixing kit, waste connector, and trim supplied together prevents fitting delays, saving trade time on site during installation.

Key Features

• Rimless ceramic bowl design prevents dirt accumulation
• IMFF01 powder coated steel mounting frame rated for 400kg loads
• Height adjustable frame legs span from 1070mm to 1270mm for flexible mounting
• Slim frame depth fits wall cavities from 180mm wide
• Fully insulated cistern body prevents internal wall condensation
• WRAS approved dual flush valve with eco friendly lower volume settings
• Front access panel enables convenient maintenance without wall damage
• Soft close seat hinges eliminate sudden dropping and slamming noise
• Quick release seat fittings detach quickly for thorough cleaning
• Includes ABS reflective chrome flush plate available with round or square button cutouts

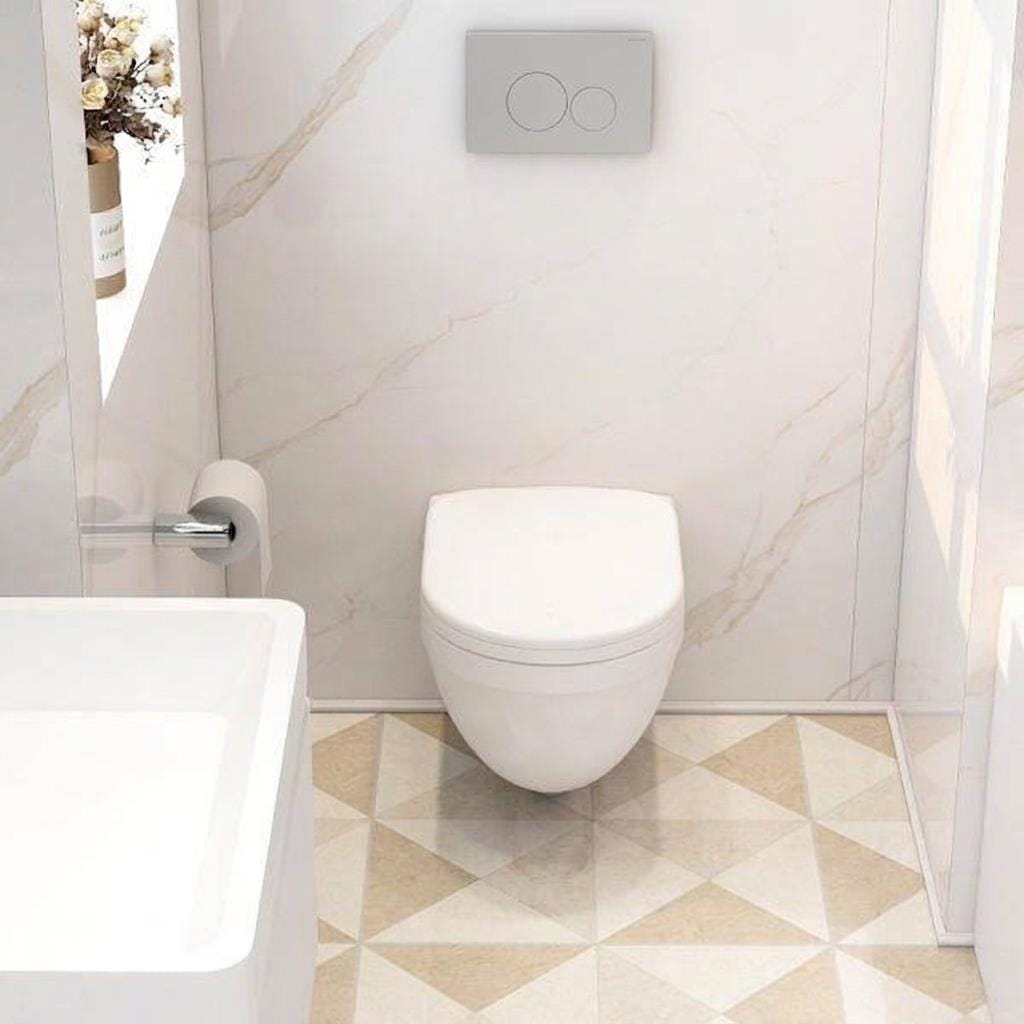

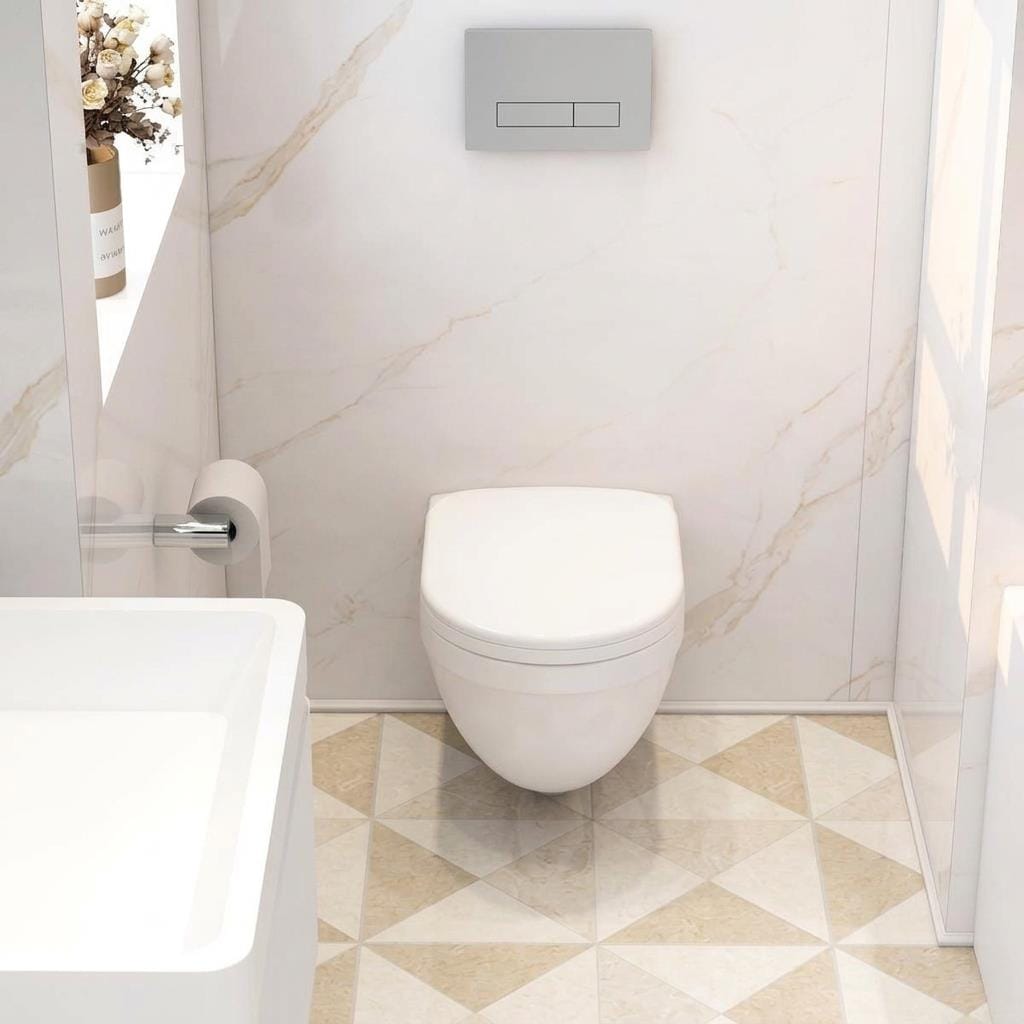

• Wall mounted installation frees up visible floor space
• 25 year ceramic guarantee and 10 year frame guarantee included

About Imex
Imex stands as a trusted manufacturer of modern sanitaryware, uniting European engineering standards with environmentally conscious production. Their design focus centers on creating durable products that conserve water through internal mechanism design. Operating ISO certified production facilities, Imex subjects every item to multi stage quality inspections. Backed by extensive guarantees, the brand delivers reliable performance for modern residential projects.
