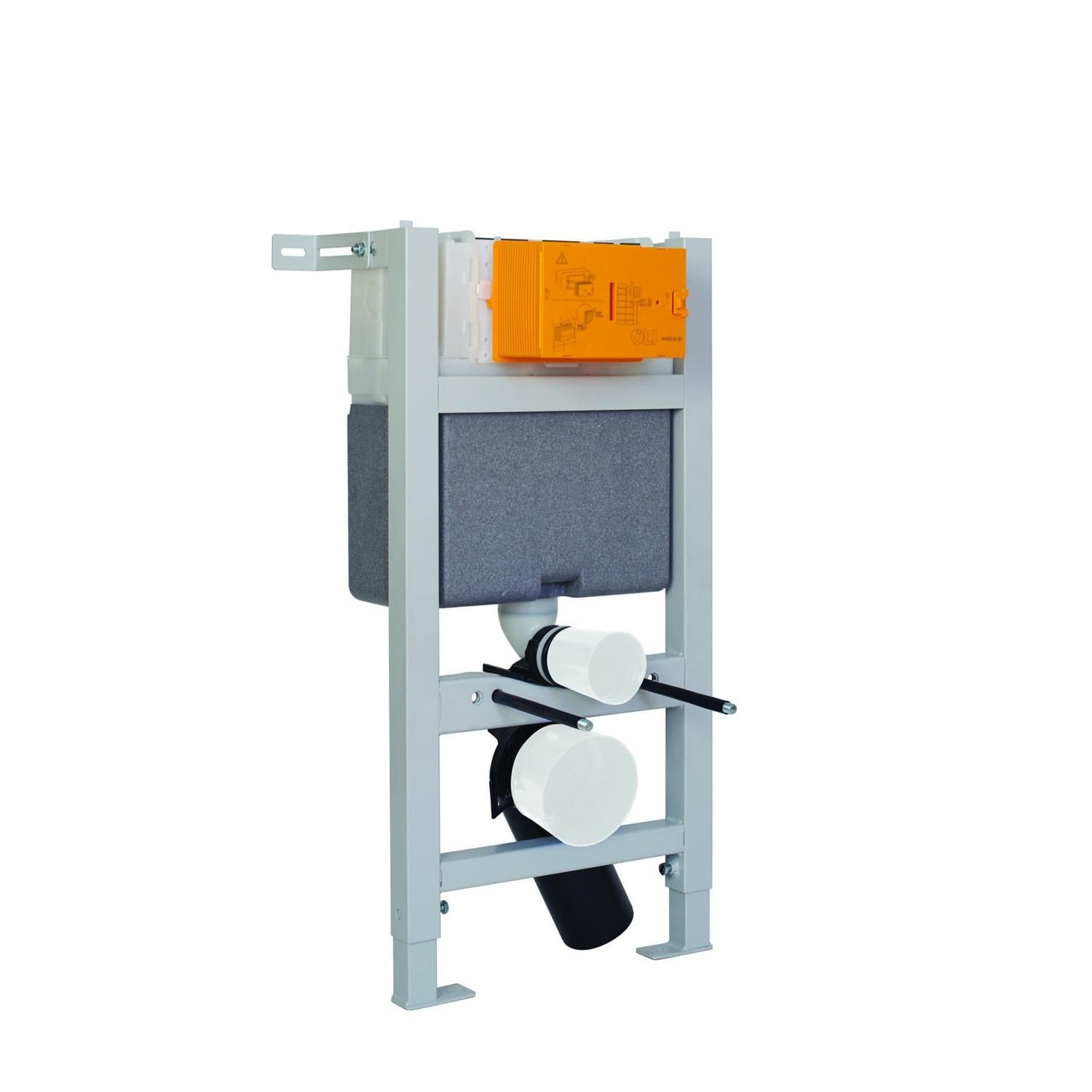

JTP Oli Wall Mounted 820mm Frame and Cistern

The JTP 820mm WC Frame & Cistern is a reduced height concealed cistern and mounting frame designed for wall-hung WC installations. Engineered for complete structural integrity, this 820mm unit is specifically developed for applications where space is restricted vertically, such as under windows or within low level furniture units.

Technical Overview

This unit serves as the structural backbone for a wall hung toilet, transferring the weight of the pan and the user directly into the floor and wall. It integrates a dual flush cistern within a powder coated steel frame, providing a clean concealed solution that remains accessible through the flush plate aperture.

Key Technical Features

• Reduced Height (820mm): Unlike standard 1120mm frames, this compact unit allows for WC installation in height restricted areas.
• Dual-Mount Flush Plate Configuration: The cistern is designed for both top or front-mounted flush plates. This allows for maximum flexibility in cabinetry design or wall finishing.
• 3/6 Litre Dual Flush System: The cistern offers a water saving 3-litre flush and a full 6-litre flush. This ensures compliance with modern water efficiency standards and reduces household water consumption.
• Freestanding Design: The frame includes robust floor brackets and wall fixings, allowing it to be installed as a freestanding unit within a stud wall or secured directly against a solid wall.

• Structural Reliability: The steel frame is designed to support weights of up to 400kg (when installed correctly), providing a secure, movement-free base for wall-hung ceramics.
• Acoustic Insulation: The concealed nature of the cistern, combined with the air gap within the wall cavity, provides a natural acoustic barrier, resulting in a quieter flush and refill compared to traditional close-coupled toilets.
• Service Accessibility: Internal components are fully accessible by simply removing the flush plate, ensuring that maintenance does not require the removal of tiles or wall panels.

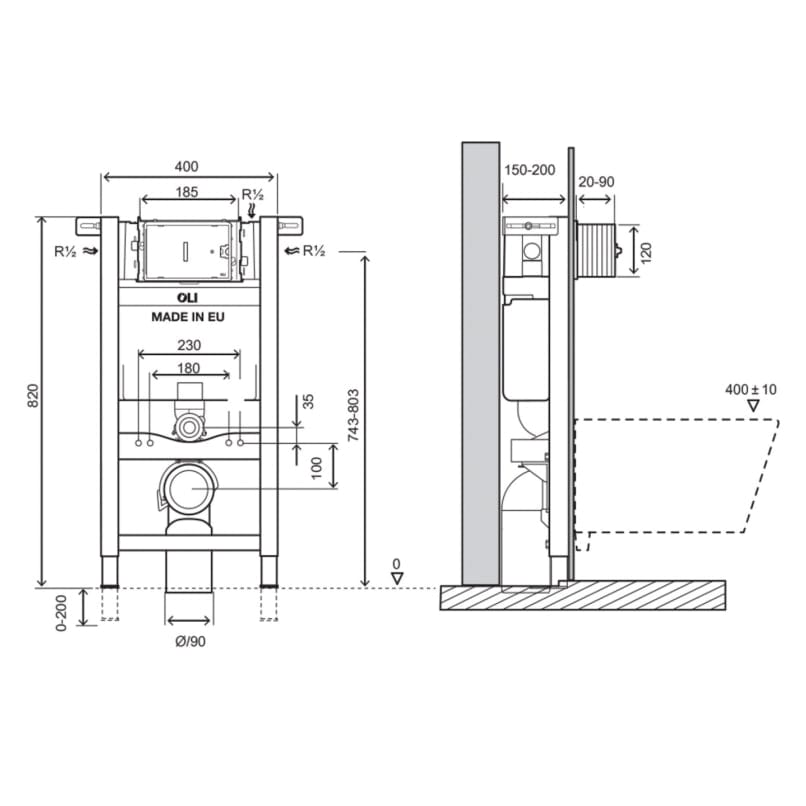

Technical Specifications

• Product Code: WCF820
• Frame Height: 820mm
• Installation Type: Pre-wall / Freestanding
• Flush Volume: 3/6 Litre Dual Flush
• Compatibility: Suitable for all standard wall-hung WC pans
• Inclusions: Includes mounting brackets and WC waste bend

About JTP

Just Taps Plus (JTP) operates with a strict mission to ensure there is no compromise on their manufacturing. By focusing on the production of high quality taps, showers, and accessories, they maintain total control over the process starting from the design stage. They ensure only top raw materials and parts are used in their products and manufacturing. This dedication means that regardless of the design chosen from their collections, ultimate quality comes as standard.

Compatible Flush Plates Sold Separately
