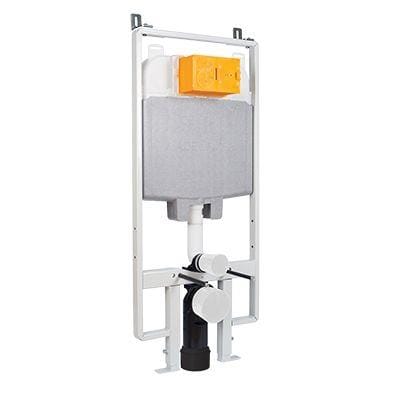

JTP Oli Wall Mounted 1200mm Slim Frame and Cistern

The JTP 1200mm Slim WC Frame & Cistern is a specialized slimline version of the standard height concealed mounting system. While it maintains the industry standard 1200mm height, it features a significantly reduced depth profile. This makes it the technical solution of choice for installations where floor space is at a premium or where the wall cavity depth is too shallow for a standard frame.

Technical Overview

This unit functions as a structural, self-supporting unit for wall-hung WC pans. The "Slim" designation refers to the cistern's depth, allowing the entire assembly to be concealed within narrow stud work or thin "pre-wall" partitions without sacrificing the ergonomic height of the flush plate.

Key Technical Features

• Slimline Depth Profile: Engineered with a reduced depth cistern, this frame allows for a much thinner boxing-in or wall cavity. This is a critical benefit in small ensuites or cloakrooms where saving even a few centimeters of floor space is essential.
• Standard 1200mm Height: Despite its slim profile, it retains the standard 1200mm height.
• Front-Facing Plate Mounting: Designed exclusively for front-facing flush plate installation. This vertical orientation is optimized for easy access and ensures the flush plate remains the central service point for the unit.
• Dual Flush Efficiency: The internal system provides a 3/6 litre dual flush.
• Structural Rigidity: Constructed from powder coated steel, the slim frame is designed to support the full weight of the toilet pan and user without bowing or shifting.
• Simplified Maintenance: The front flush plate acts as the primary access hatch for servicing and maintenance needs.
• Condensation Control: The slim cistern is fully insulated. This thermal barrier prevents moisture from forming on the exterior of the tank, which is vital in narrow wall cavities where airflow may be limited.
• WRAS Approved: This unit is fully WRAS (Water Regulations Advisory Scheme) approved. This certification ensures that the materials and components used meet the highest legal requirements for water safety and efficiency in the UK, preventing contamination and unnecessary water waste.
• Inclusions: Includes mounting brackets and WC waste bend

About JTP

Just Taps Plus (JTP) operates with a strict mission to ensure there is no compromise on their manufacturing. By focusing on the production of high quality taps, showers, and accessories, they maintain total control over the process starting from the design stage. They ensure only top raw materials and parts are used in their products and manufacturing. This dedication means that regardless of the design chosen from their collections, ultimate quality comes as standard.

Compatible Flush Plates Sold Separately
