Ideal Standard ProSys 1150mm Concealed Cistern for I.Life.E Smart Toilet

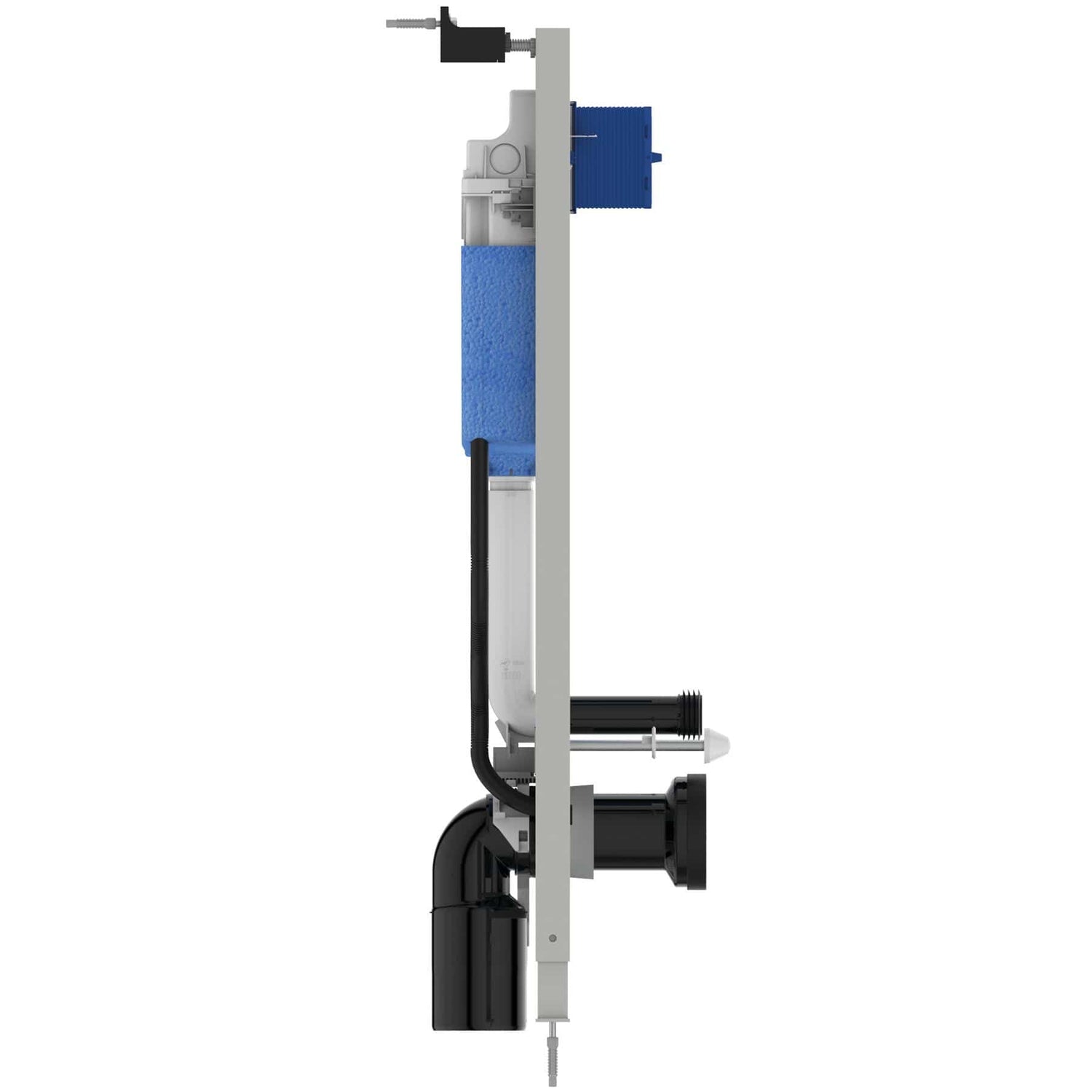

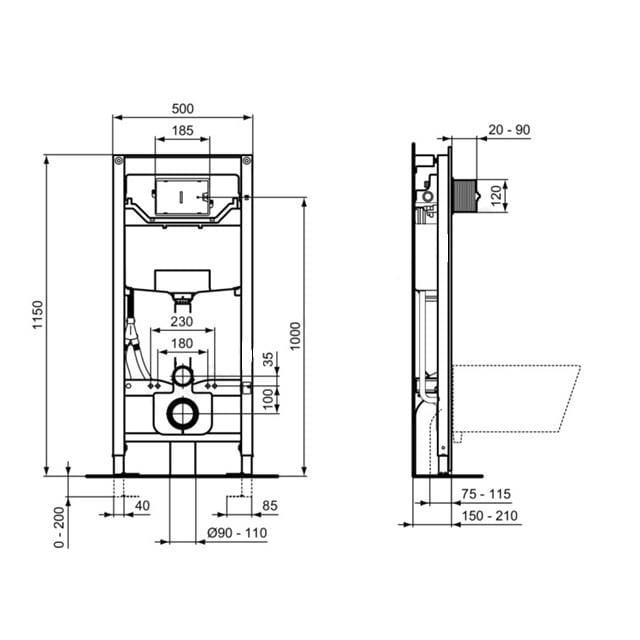

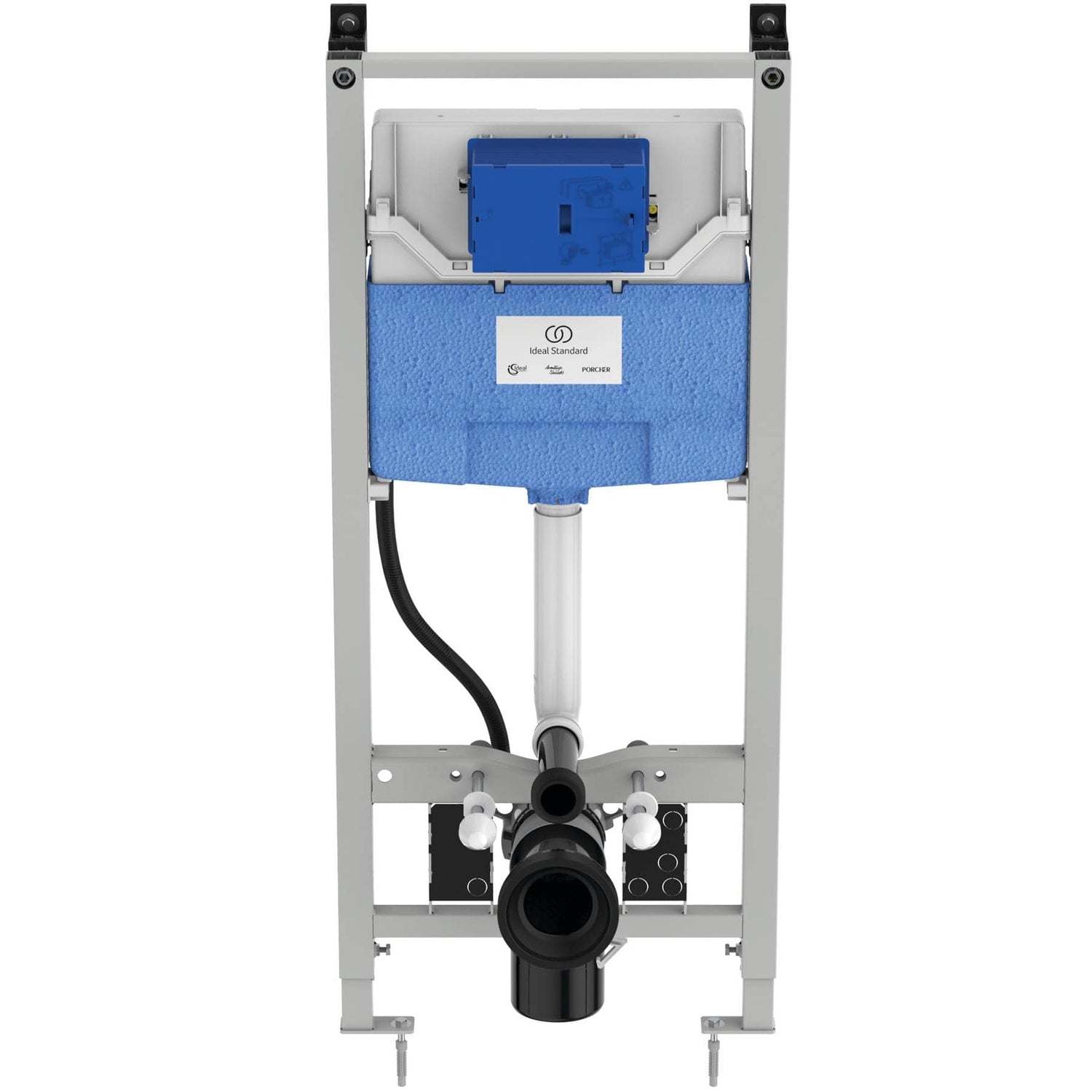

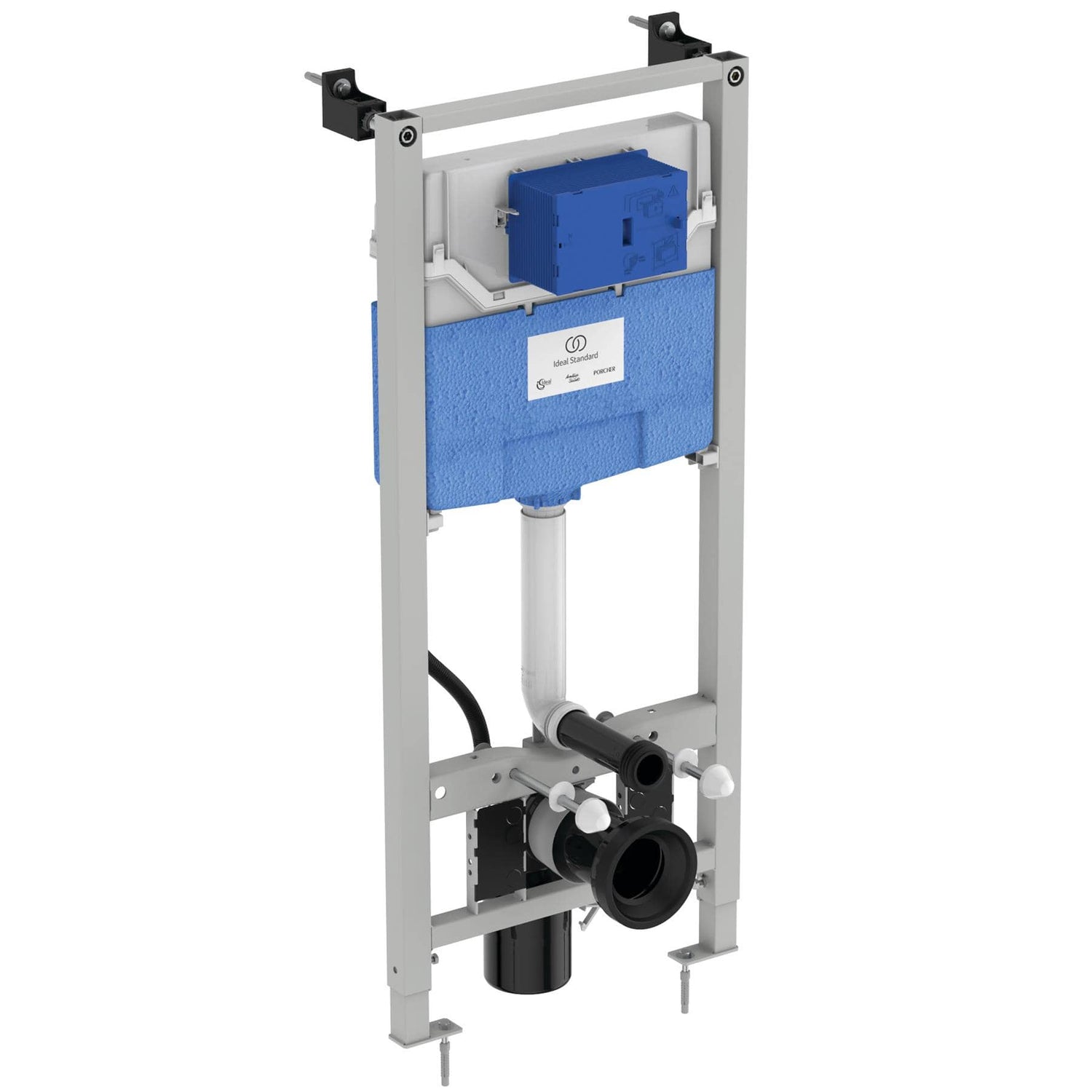

This Ideal Standard ProSys 1150mm Concealed Wall Frame and Cistern installation system provides the structural support and water management for the Ideal Standard i.Life E wall hung smart toilet. The steel frame is designed for installation within stud walls or in front of solid walls with a masonry wrap.

The cistern is factory set for a 6/4 litre dual flush. To support water conservation efforts, the valves are adjustable to a lower 4.5/3 litre volume. The unit is designed for use with Ideal Standard Oleas mechanical flush plates and can be adapted for pneumatic or touchless sensor operation.

It features a pre-fitted, watertight conduit that runs through the frame. This allows the power and water connections for the bidet functions to be pulled through easily during installation, ensuring all utility lines remain hidden and protected from moisture.

Key Features

• Integrated Smart Toilet Conduit: The frame is designed specifically for the i.life E shower toilet, allowing for the direct and protected routing of water and electrical connections.
• Adjustable Dual Flush: Preconfigured at a 6/4 litre flush, the internal valves can be adjusted to a water-saving 4.5/3 litre setting to meet specific efficiency requirements.
• Mechanical to Digital Conversion: While designed for mechanical operation, the cistern can be upgraded to pneumatic or touchless sensor activation with the addition of a separate conversion kit.
• Certified Backflow Prevention: The AUK 1 classification confirms the unit meets UK Water Regulations for Category 5 backflow protection, a mandatory safety standard for bidet-integrated toilets.
• Maintenance Access: All internal working parts, including the flush and fill valves, are accessible through the flush plate aperture for straightforward servicing without removing wall tiles.
• Structural Compliance: Tested to EN 14055 standards, the steel frame provides the necessary load-bearing support for wall-hung WC bowls.

Note: This concealed cistern is designed for use with the Oleas range of mechanical flush plates. Please note that the flush plate is not included with the frame and must be purchased separately to complete your installation.
