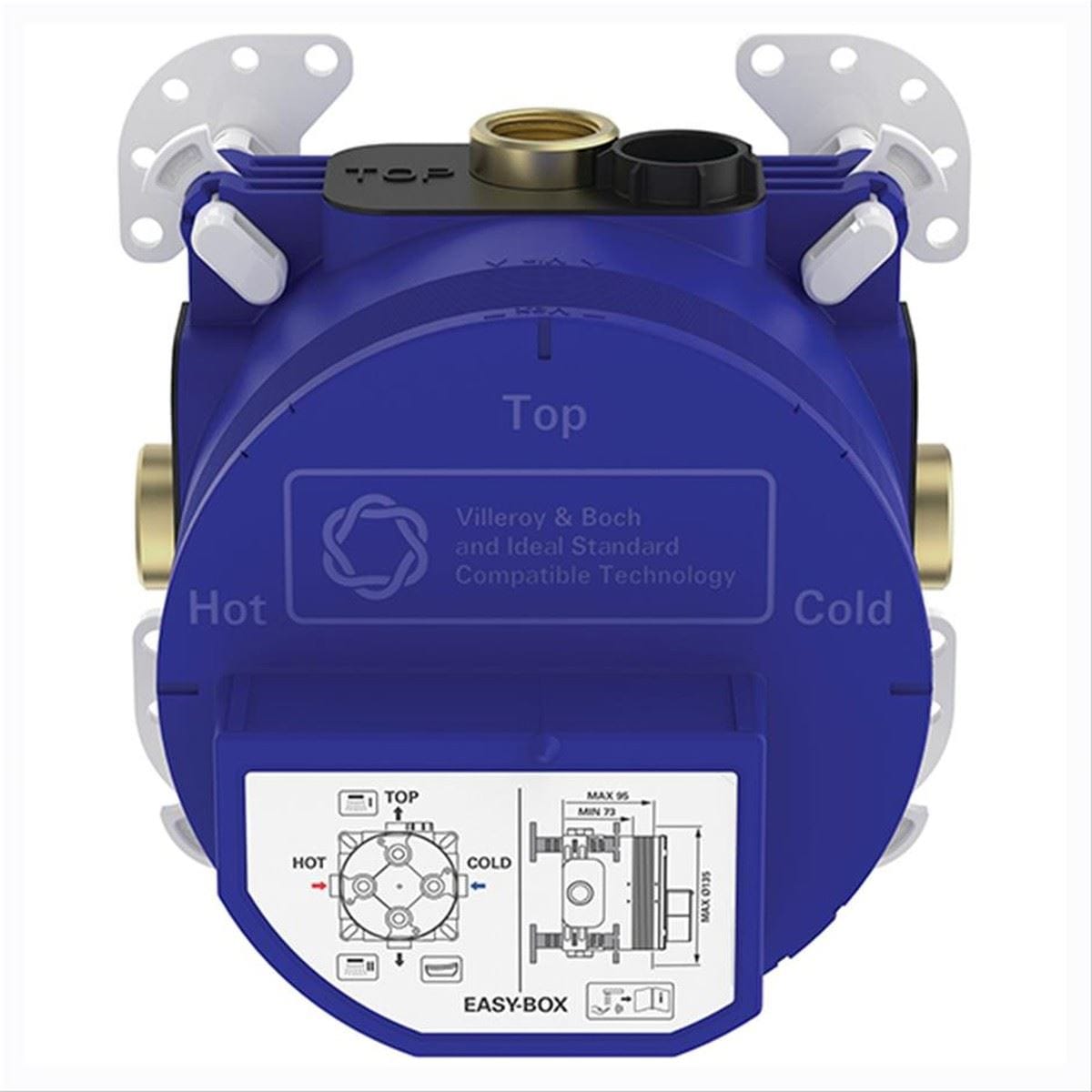

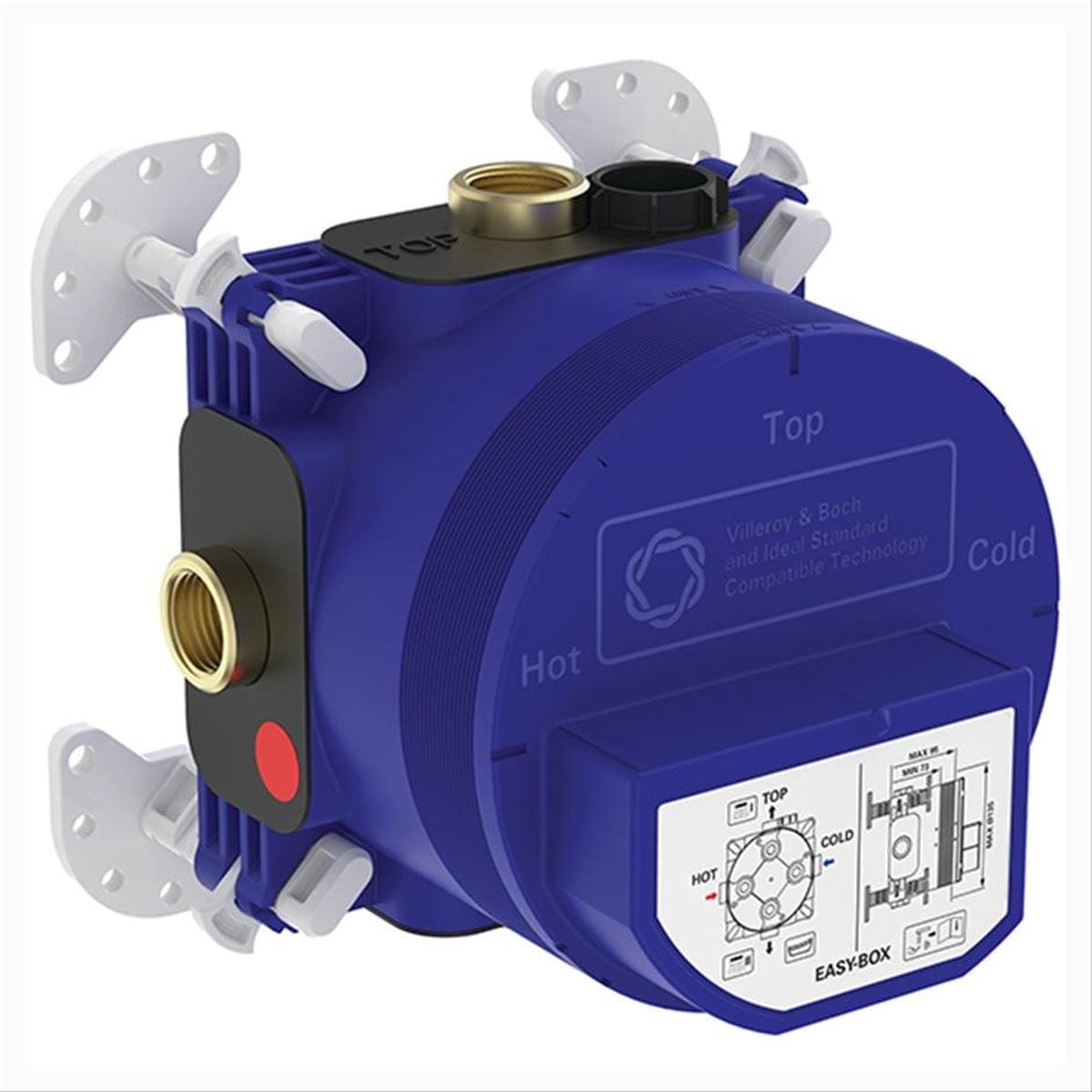

Ideal Standard Easybox Concealed Installation Valve

Serving as the universal internal foundation for Ideal Standard concealed brassware, the Easybox Concealed Installation Valve handles primary plumbing connections inside the wall cavity. This hidden base unit operates as a standardized chassis engineered to power thermostatic shower valves, single lever mixers, and bath shower controls. Fitting the internal module during first fix plumbing grants total planning freedom, allowing trim plates and surface finishes to be selected or updated later without disturbing surrounding tile work.

Engineering focus centres on speed of installation and long term structural integrity. The enclosed protective casing insulates internal pipework while shielding masonry and plasterboard from moisture ingress behind the wall. Versatile mounting brackets allow quick, accurate positioning across solid brickwork, stud partitioning, or prefabricated frame systems. Built with standardized G1/2" female inlets and outlets, the unit accommodates flexible pipe routing through top or bottom porting arrangements to suit specific site plumbing.

Shared compatibility across Ideal Standard and Villeroy & Boch design ranges ensures future flexibility. Homeowners can alter bathroom aesthetic styles or upgrade control mechanisms years down the line while utilizing the existing concealed unit. Full WRAS approval and compliance with EN 817 standards confirm the rough in box meets strict UK building codes and international plumbing requirements.

Key Features

• Universal Base Chassis: Powers a broad lineup of thermostatic valves, single lever mixers, and built in basin sets.
• Moisture Protection Casing: Sealed outer housing isolates internal water connections to safeguard wall cavities against leaks.
• Fast Fixation Brackets: Adjustable mounting lugs allow secure fitting directly onto brickwork, timber studs, or frame installations.
• Flexible Connection Ports: Includes G1/2" female threaded ports with top and bottom outlet routing choices.
• Broad Operating Range: Engineered for water supply systems running between 0.5 bar minimum and 10.0 bar maximum pressure.
• UK Water Compliance: Certified under WRAS approval for safe connection to UK mains water infrastructure.
• Compact Casing Dimensions: Outer box measures 158mm height by 158mm width
• Durable Hybrid Build: Manufactured using robust brass, metal, and engineered polymer materials weighing 0.99kg.
• Manufacturing Standard: Built to European EN 817 compliance standards.

About Ideal Standard

Ideal Standard brings over a century of European manufacturing expertise to modern sanitary design. Having developed the ceramic disc cartridge for taps back in 1969, the brand continuously advances user water controls. Operating as part of the Villeroy & Boch Group, Ideal Standard produces engineered fittings across European facilities.
