Ideal Standard Ceratherm T25 Single Outlet Concealed Valve Trim-set in Chrome

Defined by a smooth circular silhouette, the Ceratherm T25 Single Outlet Concealed Shower Valve Trim offers a streamlined profile for dedicated shower enclosures. Built to operate one shower outlet such as an overhead rain spray or hand spray kit, this model keeps wall space uncluttered. Internal temperature regulation relies on the Ideal Standard PreciTherm cartridge, tested through 750,000 operation cycles to guarantee long term performance. An internal fine mesh filter prevents dirt particles and scale from entering mechanical valves, allowing fast thermal adjustments that prevent running extra water down the drain.

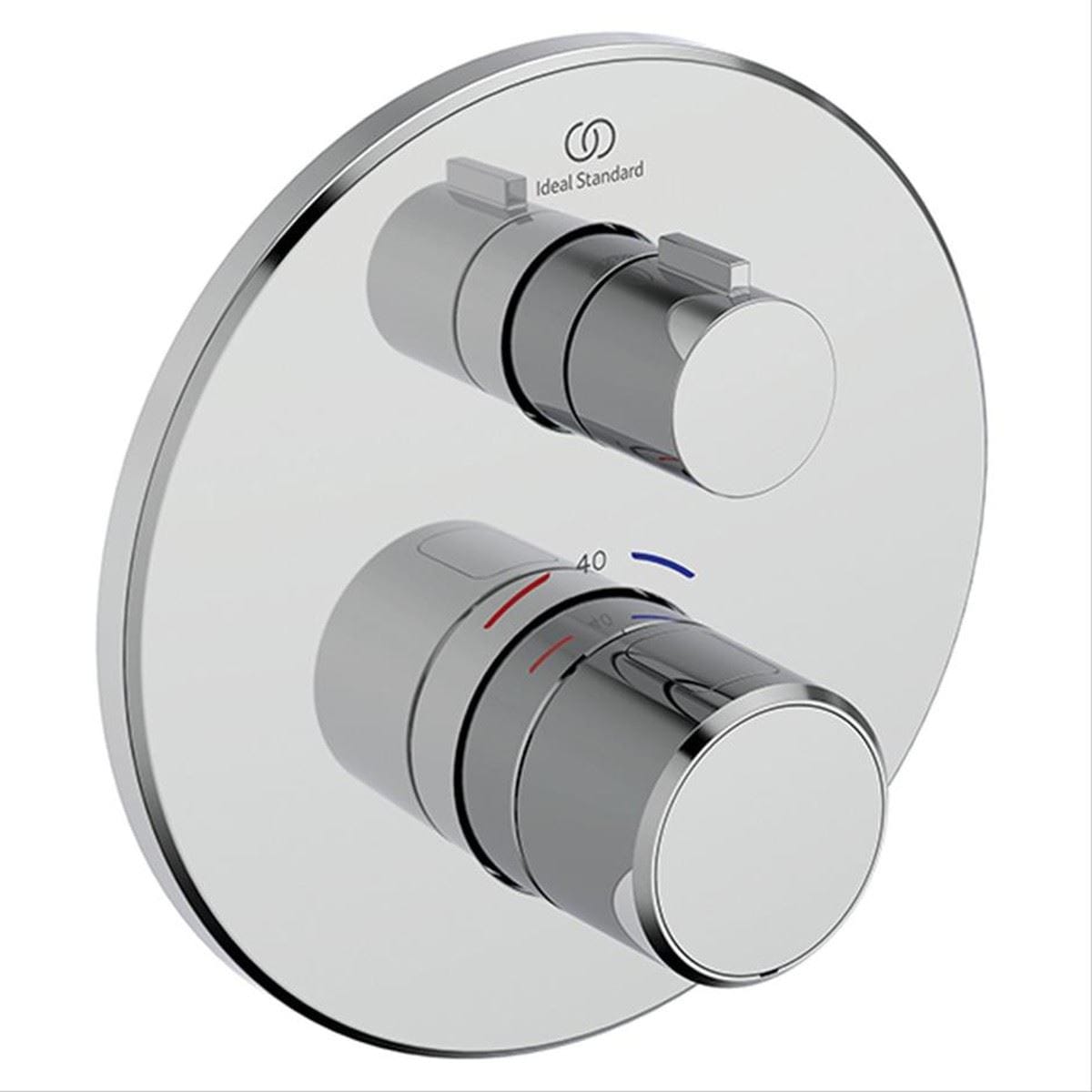

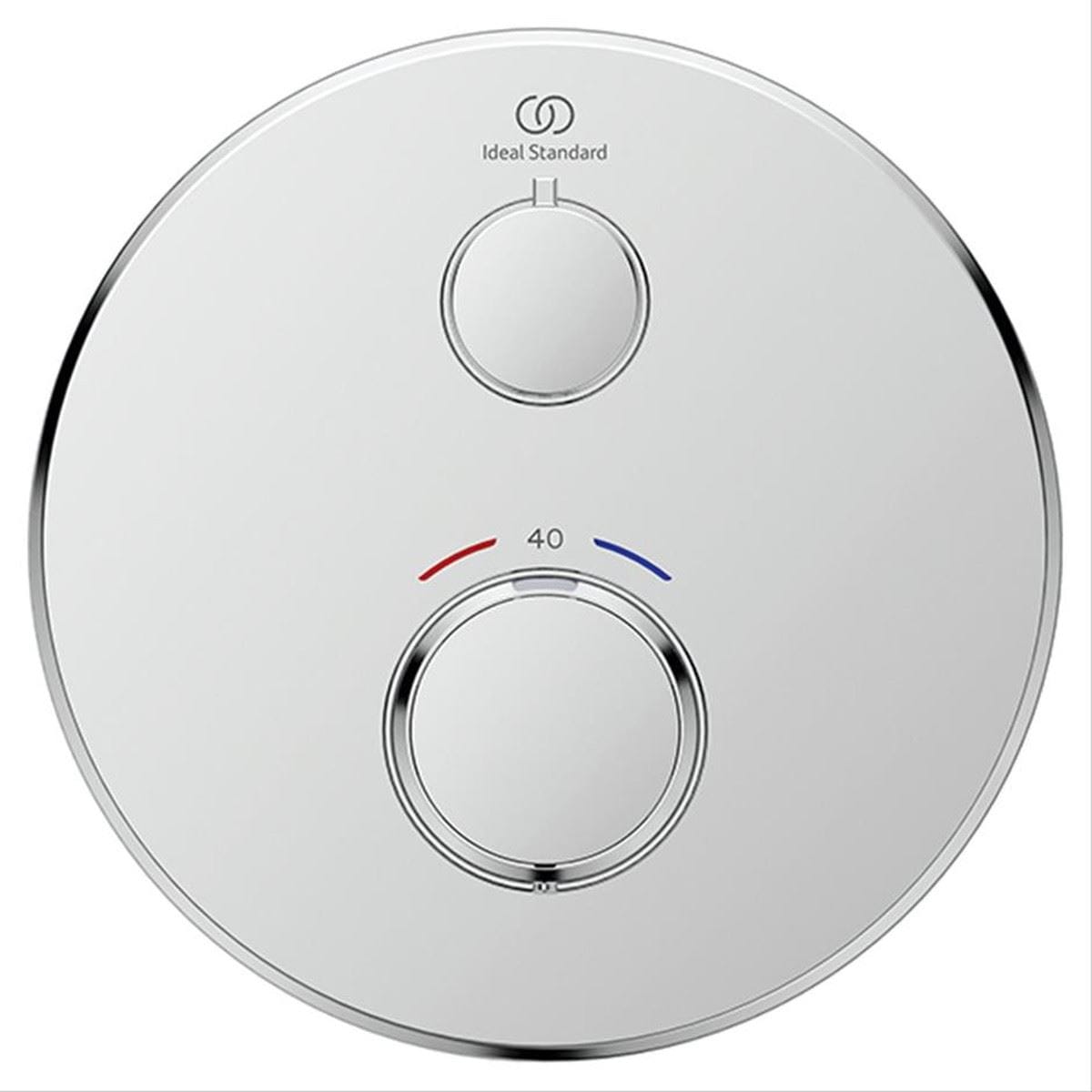

Wall controls feature two stacked cylindrical knobs set against the round faceplate. The top dial controls water volume to the single outlet, while the bottom handle sets water temperature. To protect users against thermal spikes, an integrated 40°C safety button limits movement past safe threshold levels. Should cold or hot water feeds cut out entirely, an instant automatic shut off cuts flow to protect the user.

Constructed using solid brass, the exterior faceplate is finished exclusively in chrome and treated with SmartShine technology. This surface treatment guards against everyday scratching while allowing water marks to wipe off easily.

Key Features

• Circular Wall Trim: Round faceplate styling engineered to align with curved hardware collections.
• PreciTherm Cartridge: Internal thermostatic core tested to 750,000 cycles with integrated mesh filtration to block debris.
• SmartShine Surface Layer: Protective chrome finish that resists daily surface scratching and simplifies wiping.
• Single Outlet Operation: Provides direct water flow to one dedicated fixture at 18.5 litres per minute under 3 bar pressure.
• Thermal Safety Override: Integrated 40°C stop button prevents accidental selection of scalding water temperatures.
• Automatic Cutoff Mechanism: Immediately cuts water output if either hot or cold supply fails.
• System Pressure Range: Operates reliably on systems supplying between 0.5 bar minimum and 10.0 bar maximum pressure.
• Solid Brass Core: Robust brass valve body weighing 0.93kg.

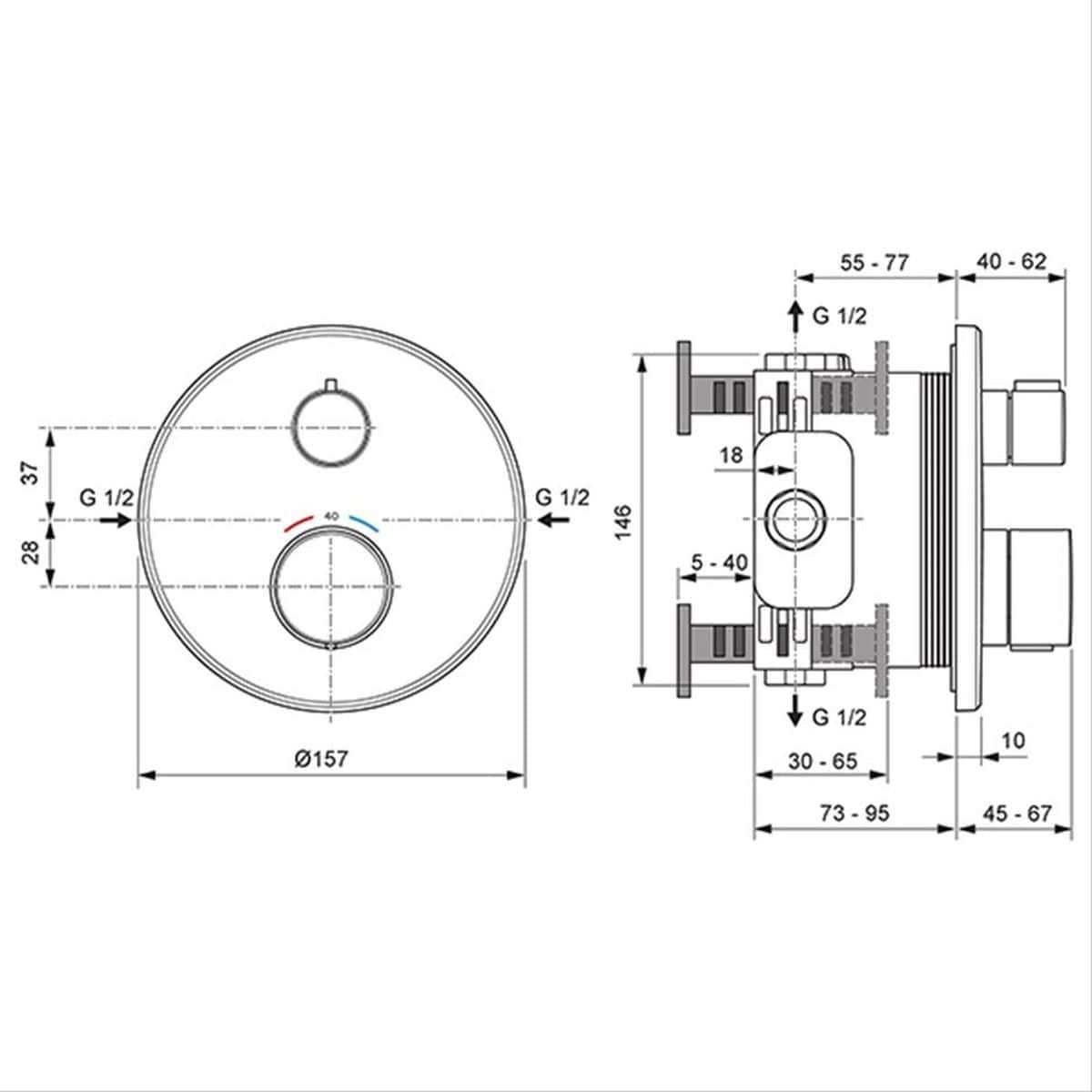

• Compact Round Dimensions: Faceplate measures 157mm across with a slim 45mm projection from the wall.
• European Engineering Standard: German engineered unit built to EN 1111 compliance.

Required Installation & Care Component Fitting this trim unit requires the Ideal Standard Easybox A1000NU concealed rough in base box, which is purchased separately and installed within the wall before tiling. Routine maintenance simply requires washing the chrome trim using warm soapy water and rinsing thoroughly.

About Ideal Standard

Ideal Standard brings over a century of European manufacturing expertise to modern sanitary design. Having developed the ceramic disc cartridge for taps back in 1969, the brand continuously advances user water controls. Now part of the Villeroy & Boch Group, Ideal Standard produces engineered fittings across European facilities.
