Crosswater Crossbox Push Shower Set 9 - 3 Outlet with Revive Steel Overhead Shower, Pencil Handset and Oveflow Bath Filler Waste

The Crosswater Push Set 9 features a Revive wall mounted fixed shower head, a pencil handset with an integrated holder, and a bath filler, all managed by a three outlet MPRO Push thermostatic trim set and the Crossbox universal concealed valve. This configuration provides a comprehensive set up, allowing for effortless switching between three water sources.

The system is powered by the Crossbox universal concealed valve, which is installed behind the wall to maintain a tidy finish. Control is provided by the MPRO Push trim set, which features two handles. The bottom dial is dedicated to precise temperature regulation. The top dial serves as both a flow controller and a three-way push-button diverter; by pressing the corresponding buttons on the dial, you can instantly select the overhead shower, the handset, or the bath filler. Rotating the same dial allows you to adjust the water volume for whichever outlet is active.

The Revive fixed shower head is constructed from stainless steel and measures 300mm in diameter. It features an integrated wall mounted arm as part of the unit, providing a unified appearance and a broad water spray. For additional flexibility, the slim pencil handset offers targeted rinsing and is docked in a wall outlet that features an integrated holder. The MPRO bath filler integrates the water inlet, overflow, and a click-clack waste into a single unit, removing the need for traditional taps on the bathtub.

This set is available in a variety of colours to coordinate with your interior.

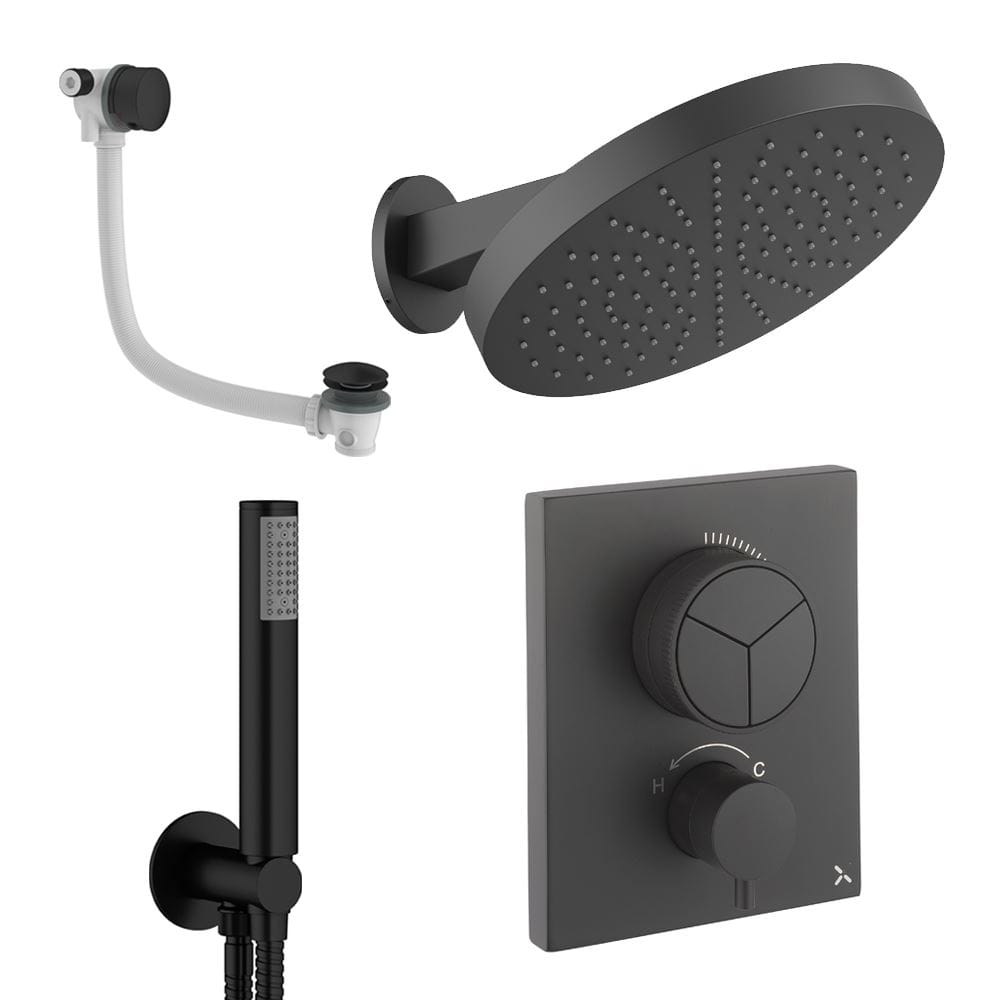

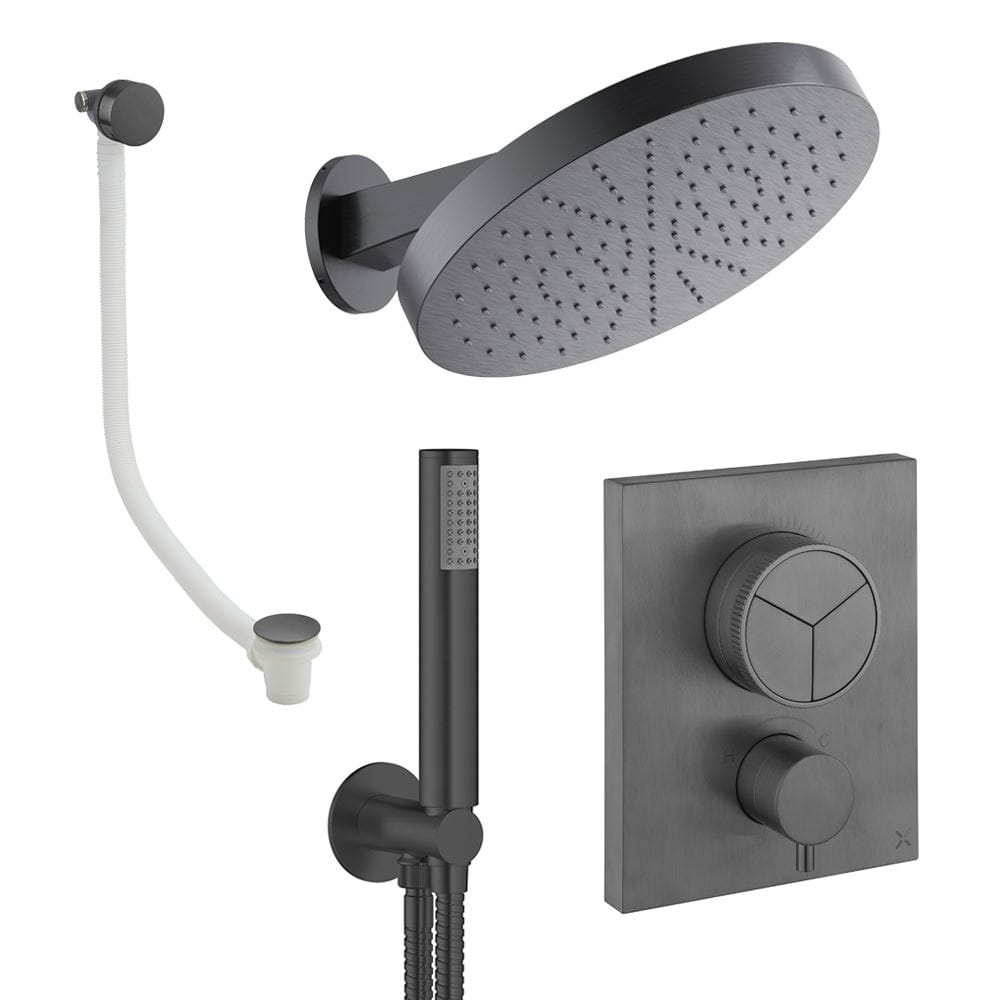

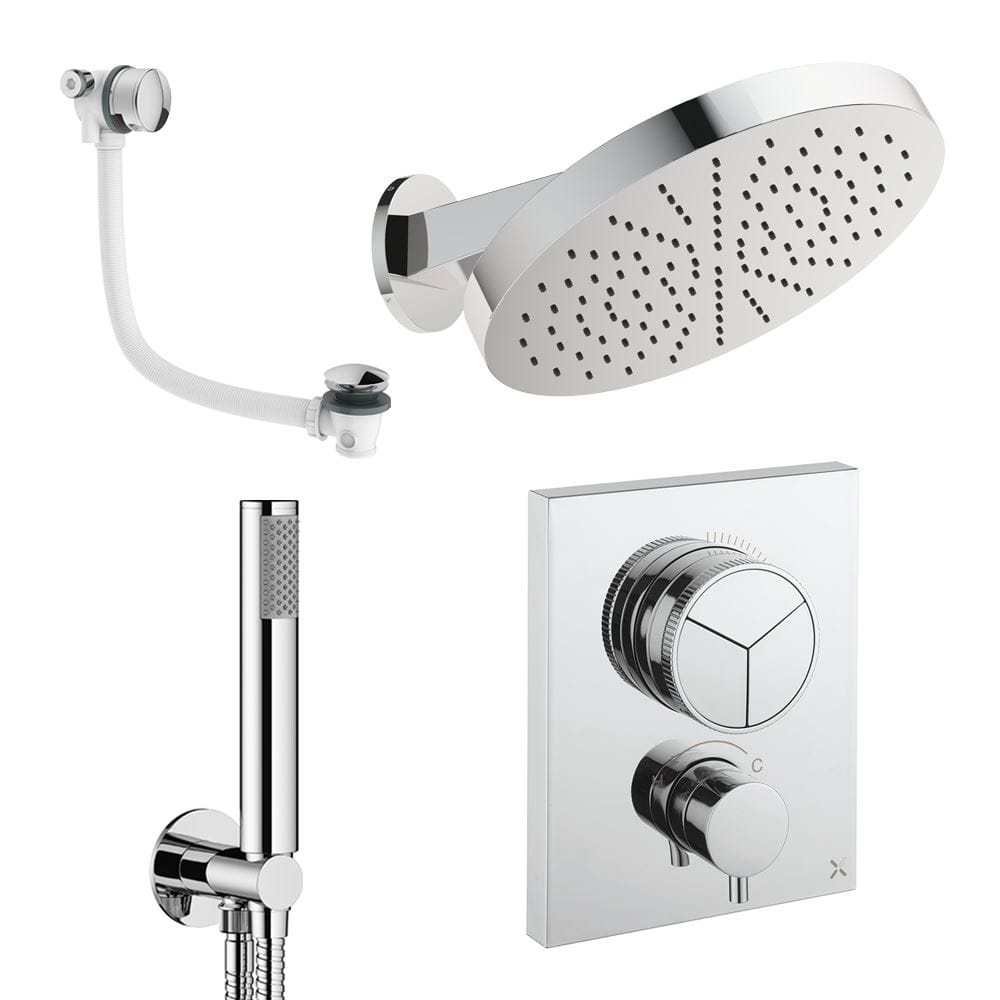

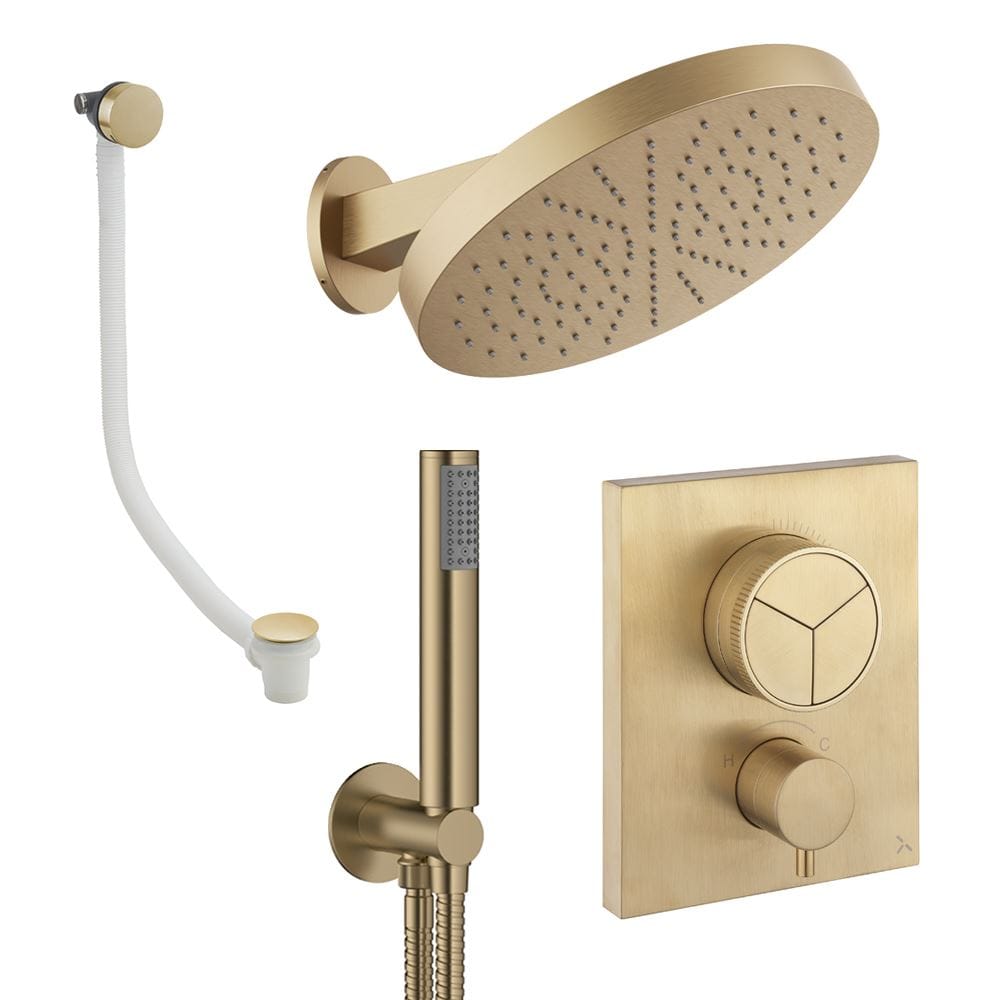

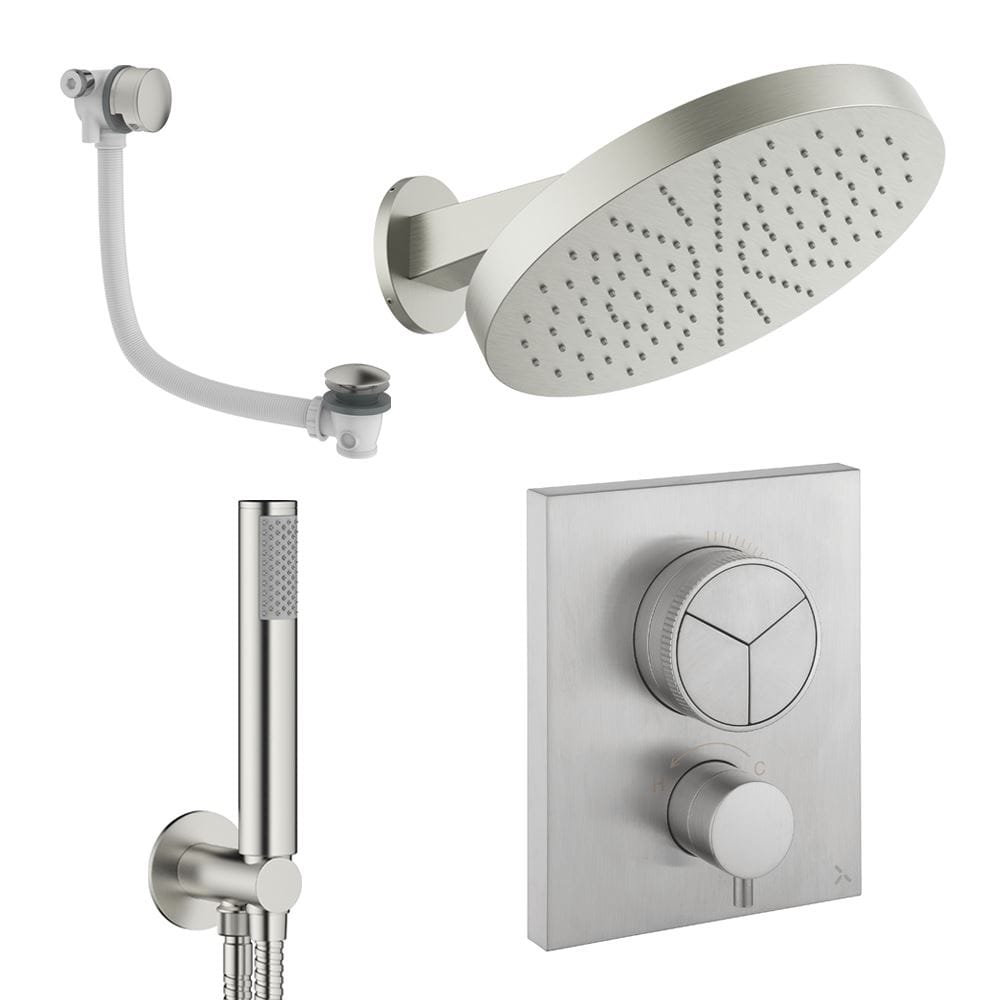

What’s in the Box

• Revive Fixed Shower Head: A 300mm circular stainless steel overhead with an integrated wall mounted arm.
• Pencil Handset: A slim handheld unit for versatile water use.
• Wall Outlet & Integrated Holder: A combined unit that delivers water to the handset and provides a secure dock.
• Shower Hose: A flexible hose connecting the handset to the wall outlet.
• MPRO Bath Filler: A 3-in-1 unit combining the water inlet, overflow, and a click-clack waste.
• Three Outlet MPRO Push Trim Set: The external plate and dials for temperature, flow, and three button push diversion.
• Crossbox Universal Concealed Valve: The internal thermostatic unit that powers the entire system.

Key Features

• Three Outlet Push Control: Manage an overhead shower, a handheld unit, and a bath filler from one central interface with tactile push buttons.
• Unified Head Design: The 300mm Revive head features an integrated arm, providing a streamlined appearance and simplifying installation.
• Integrated Flow Regulation: Rotating the top push dial allows for smooth adjustment of the water volume.
• Integrated Bath Solution: The bath filler replaces traditional taps for a minimalist look and includes a simple press-operated click-clack waste.
• Thermostatic Regulation: Built-in technology maintains a constant water temperature, protecting against sudden changes in the household supply.
• Finish Variety: The set is available in a variety of colours to match your bathroom decor.

Dimensions

• Revive Shower Head: H: 169mm x W: 300mm x D: 346mm
• MPRO Bath Filler: H: 130mm x W: 332mm x D: 250mm
• MPRO 3 Outlet Push Trim: H: 160mm x W: 130mm
• Designer Shower Kit (Handset): H: 234mm x W: 53mm x D: 77mm
• Crossbox Universal Valve: H: 199mm x W: 166mm

About Crosswater

Crosswater is a British manufacturer known for bathroom solutions that prioritise functional design and reliable performance. Based in Kent, the company offers a wide range of brassware, furniture, and ceramics that cater to modern interior styles. By focusing on engineering excellence and aesthetic variety, Crosswater provides durable products intended for the demands of daily use in both residential and commercial settings.
